KIT BHD MB50-50 6-142

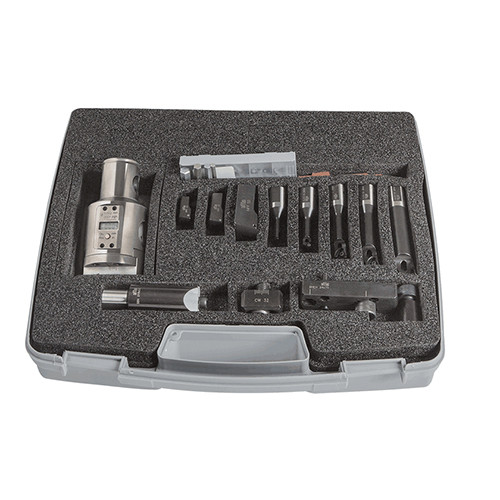

Contains a fine boring head with a digital 0.002 mm direct adjustment and various boring tools and inserts. Each kit enables boring within the specified diameter range.

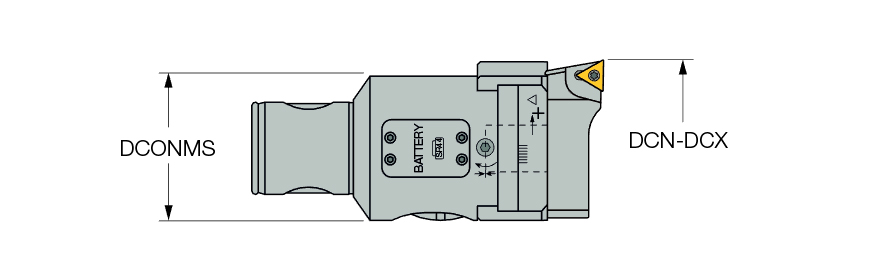

| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Shank Size (SS) | MB50 | Cutting Diameter Minimum (DCN) | 6 mm |
| Application | | Boring Kits | ITSBORE System | | Cutting Diameter Maximum (DCX) | 142 mm |
| Tool Type | MB Fine boring heads | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Contains a fine boring head with a digital 0.002 mm direct adjustment and various boring tools and inserts. Each kit enables boring within the specified diameter range. | COO | Italy |

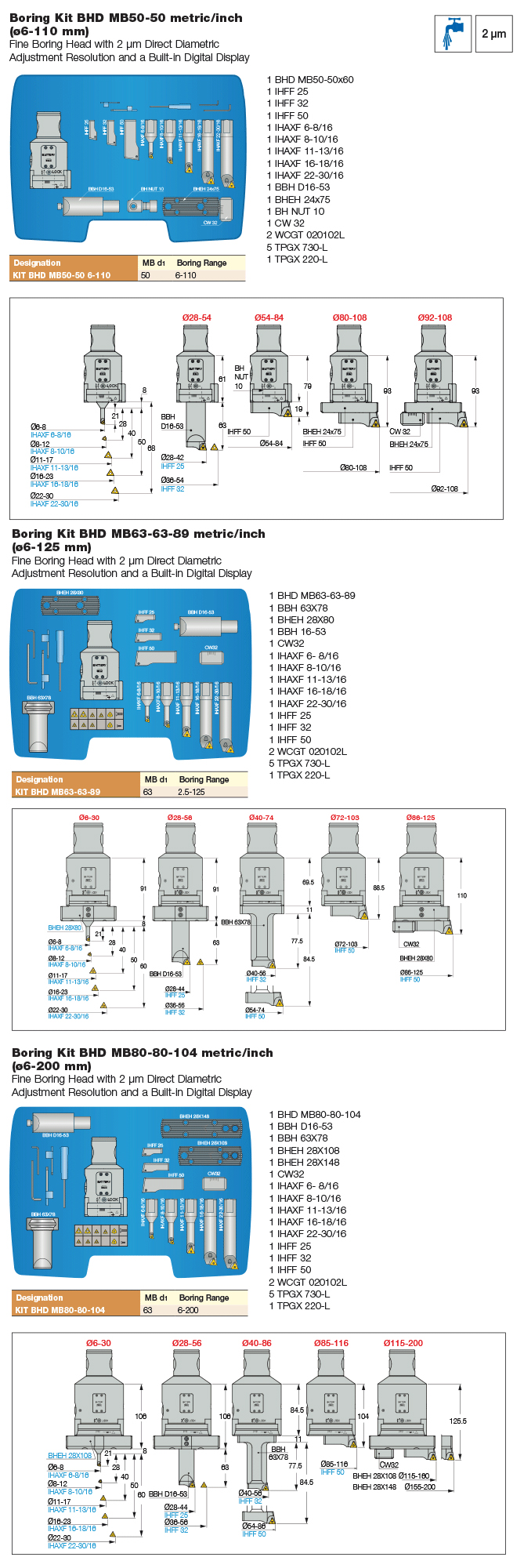

| Remarks | For kit contents and boring options, click on More Info. |
Shipping Info
Weight per item
2.7300
