TPGN M-5X0.8-H HETC

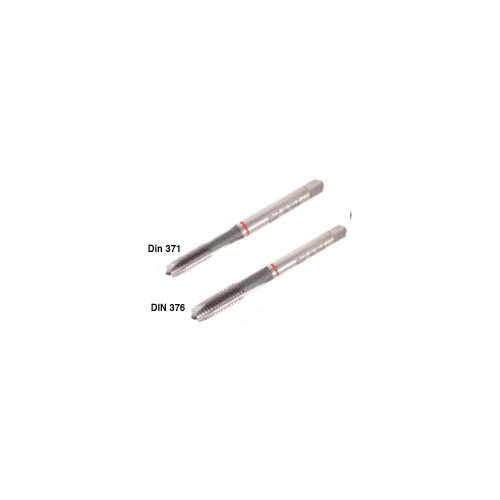

DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads, for Hardened Steel and High Temperature Alloys

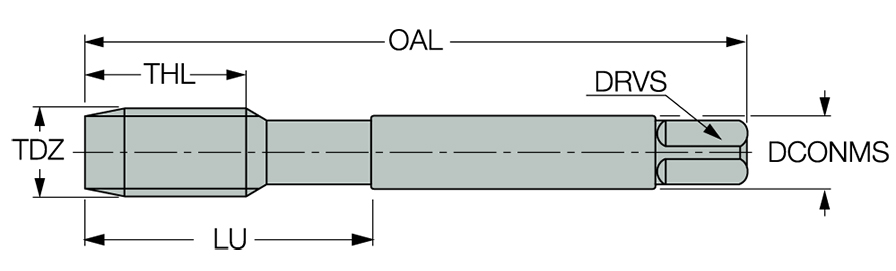

| Thread Size | M5 × 0.8 | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Diameter Size (TDZ) | M5 | Thread Cutting Part Length (THL) | 14 mm |
| Thread Pitch (TP) | 0.8 mm | Drive Size (DRVS) | 4.9 mm |
| Usable Length (LU) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Grade | HETC |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Unit | M |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads, for Hardened Steel and High Temperature Alloys | COO | Hungary |
Shipping Info
Weight per item
0.0140
