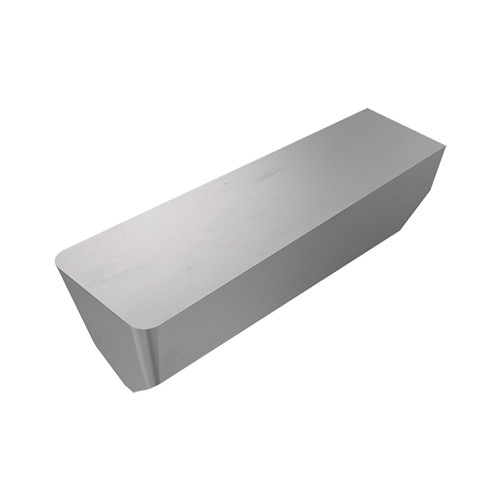

GCP 3.96-0.8 E004 IS15
Straight edge grooving and recessing inserts for machining heat-resistant alloys
| Cutting Width (CW) | 3.96 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | |
| Corner Radius (RE) | 0.8 mm | Applicable Material | | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 11 Degrees | Measurement Type | Metric |
| Insert Thickness (S) | 4.51 mm | Tool Type | Parting & Grooving Inserts |
| Insert Length (INSL) | 12.7 mm | Body Material | Carbide |
| Grade | IS15 | Unit | M |
| Cutting Edge Material | Ceramic |
Product Features
| Family Description | Straight edge grooving and recessing inserts for machining heat-resistant alloys | FamilyName | GCP (CER) |
| Remarks | E004 - Honing size 0.04mm | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0026
Name
Groove/Turn Indexable Inserts
FamilyName
GCP (CER)
BrandName
Iscar
