| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCGW | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.3 mm |
| Insert Size | 09T304 | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Grade | BI30HC |
Product Features

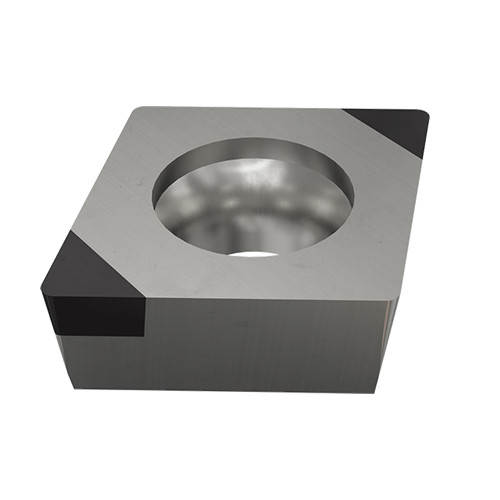

| Family Description | Positive 80° rhombic inserts with 2 CBN mini tip and flat rake angle for hardened steel and cast iron | FamilyName | CCGW 2MT (CBN) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
0.0135
Name
Turning Indexable Inserts
FamilyName
CCGW 2MT (CBN)
BrandName
Iscar
