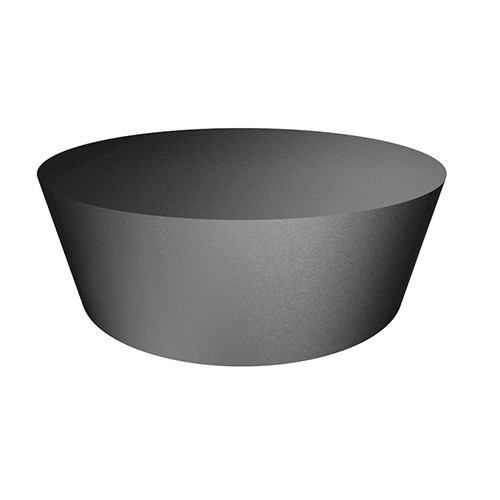

RPGN 120400 T01020 IS14
Positive round ceramic inserts for machining cast iron and heat-resistant alloys
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Style | RPG | Min. Turning Feed (ft(min)) | 0.11 mm/rev |
| Insert Size | 3 T042 | Max. Turning Feed (ft(max)) | 0.53 mm/rev |

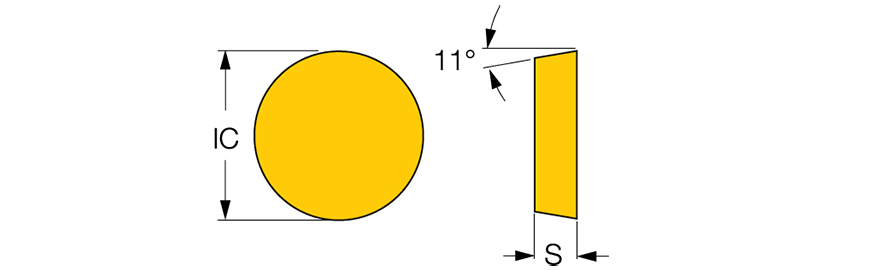

| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS14 | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron and heat-resistant alloys | FamilyName | RPGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Name
Turning Indexable Inserts
FamilyName
RPGN (CER)
BrandName
Iscar
