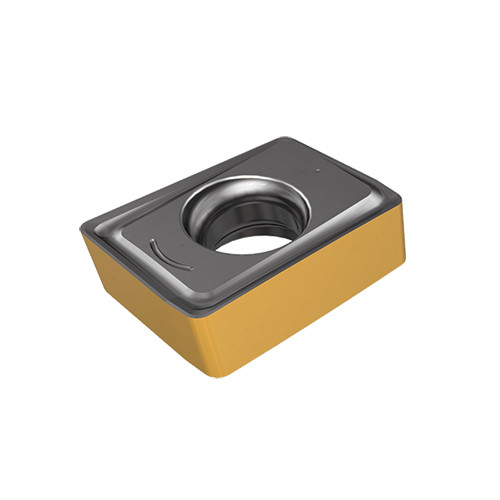

MDR ANMU 090305PNTR IC810
Double-sided rectangle inserts with 4 cutting edges with 2 center cutting edges for drilling and 2 peripheral cutting edges for milling
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.23 mm/tooth |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Edge Material | Carbide |

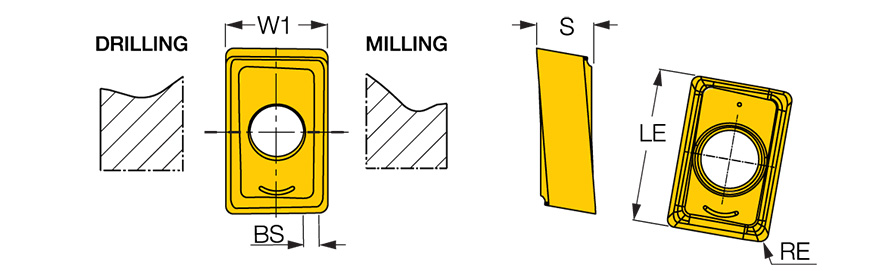

| Corner Radius (RE) | 0.5 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 6.3 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Thickness (S) | 3.15 mm | Cutting Edge Effective Length (LE) | 9.4 mm |
| Wiper Edge Length (BS) | 0.8 mm | Measurement Type | Metric |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 | Unit | M |
Product Features
| Family Description | Double-sided rectangle inserts with 4 cutting edges with 2 center cutting edges for drilling and 2 peripheral cutting edges for milling | FamilyName | MDR ANMU PNTR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0032
Name
Milling Indexable Inserts
FamilyName
MDR ANMU PNTR
BrandName
Iscar
