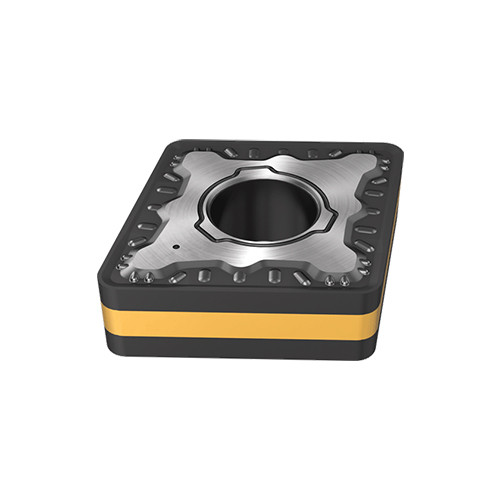

CNMG 160612-R3P IC8150
Double-Sided 80° Rhombic Inserts with a Chipformer for Rough Machining
| Applicable Material | | Steel | Cast Iron | | Grade | IC8150 |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 6.35 mm |
| Insert Style | CNMG | Tool Type | Turn Negative Inserts |

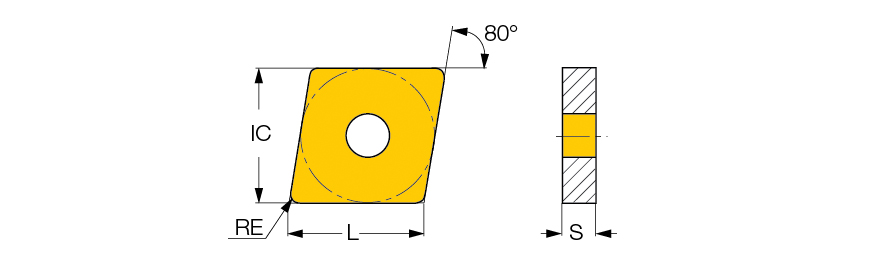

| Corner Radius (RE) | 1.2 mm | Min D.O.C. | 2 mm |
| Insert Size | 160612 | Depth of Cut Maximum (APMX) | 7 mm |
| Cutting Edge Length (L) | 16.12 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiCN+TiN | Unit | M |
Product Features
| Family Description | Double-Sided 80° Rhombic Inserts with a Chipformer for Rough Machining | FamilyName | CNMG-R3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0220
Name
Turning Indexable Inserts
FamilyName
CNMG-R3P
BrandName
Iscar
