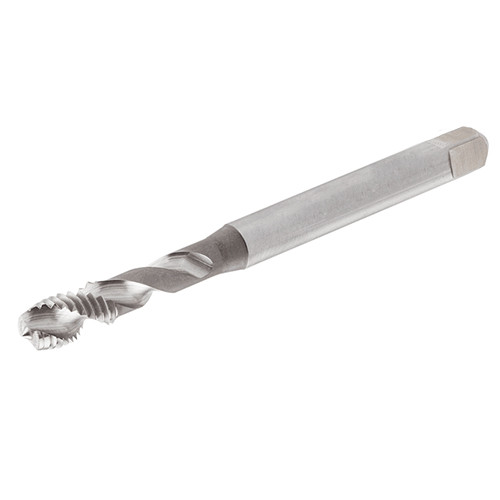

TPS M-24X3.0-M HEST
DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials.

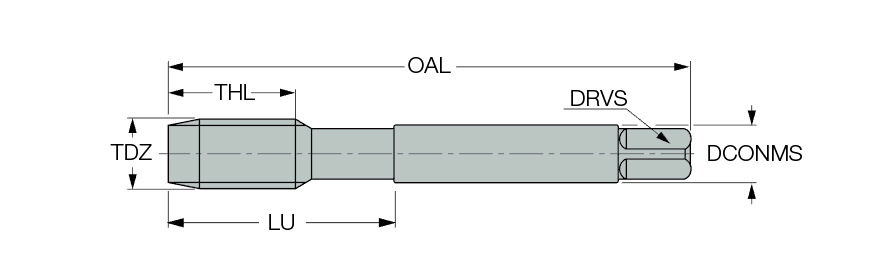

| Thread Diameter Size (TDZ) | M24 | Coating | Steam tempered |
| Thread Pitch (TP) | 3 mm | Coolant Supply Property (CSP) | External |
| Thread Standard | THFT | | Measurement Type | Metric |
| Overall Length (OAL) | 160 mm | Grade | HEST |
| Thread Cutting Part Length (THL) | 30 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 14.5 mm |
| Cutting Edge Material | HSS | Thread Size | M24 × 3 |
| Standard | DIN 376 | Unit | M |
| Tool Type | Machine Blind Hole Taps |
Product Features
| Family Description | DIN 13 HSS spiral flute machine taps - metric coarse threads, for a wide range of materials. | COO | Korea |
Shipping Info
Weight per item
0.3180
