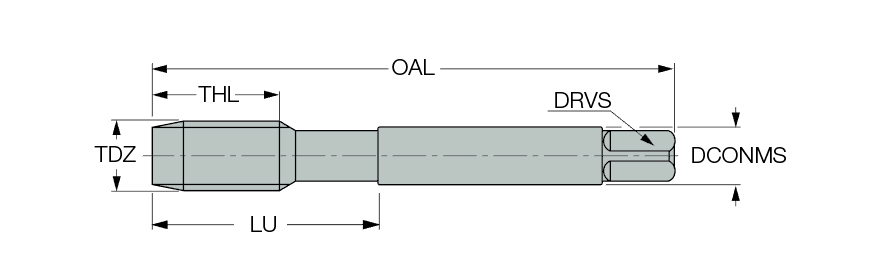

| Thread Diameter Size (TDZ) | M8 | Standard | DIN 371 |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Machine Through Hole Taps |
| Thread Standard | THFT | | Coating | TiN |
| Overall Length (OAL) | 90 mm | Drive Size (DRVS) | 6.2 mm |
| Thread Cutting Part Length (THL) | 20 mm | Measurement Type | Metric |
| Usable Length (LU) | 35 mm | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Thread Size | M8 × 1.25 |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Unit | M |
Product Features

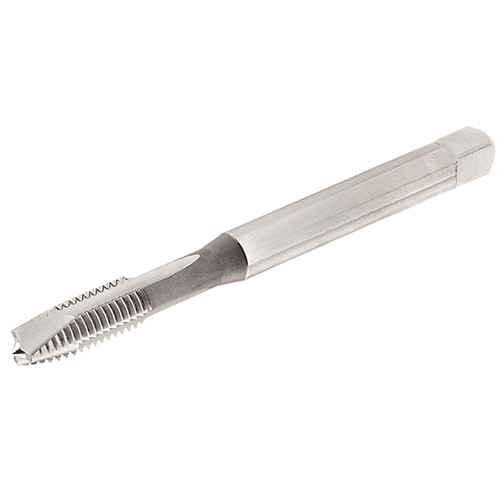

| Family Description | DIN 13 HSS gun point machine taps - ISO metric coarse threads for a wide range of materials. | COO | Korea |
Shipping Info
Weight per item
0.0110
