SIL 0050 U27

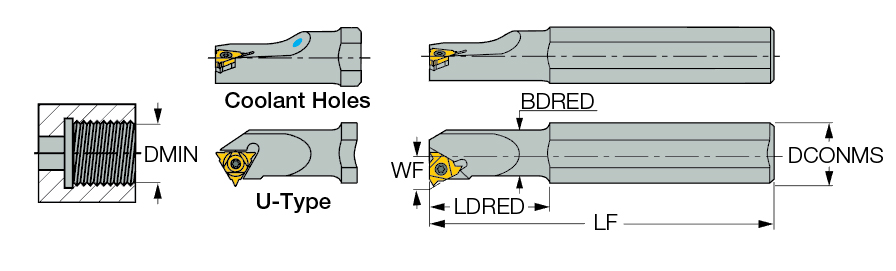

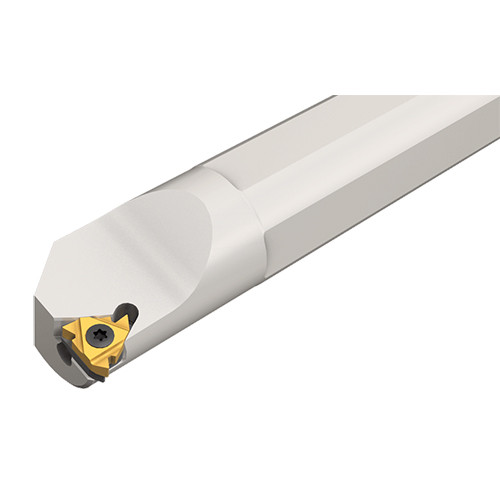

Internal threading bars (AD-short bars for adapter holders)
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 58 mm | Tool Type | Internal Indexable Threading Tools |
| Coolant Supply Property (CSP) | External | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Application | | Int. Grooving | Internal Threading lay down | |
Product Features
| Family Description | Internal threading bars (AD-short bars for adapter holders) | FamilyName | SIR/L |
| Remarks | B-steel shank with coolant hole, CB-carbide shank with coolant hole All toolholders provide 1.5 helix angle, either via the pocket or the anvil supplied For GTGA inserts, use anvil AL 16-0 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
5.0970
Name
Laydown Threading Indexable Holders
FamilyName
SIR/L
BrandName
Iscar
