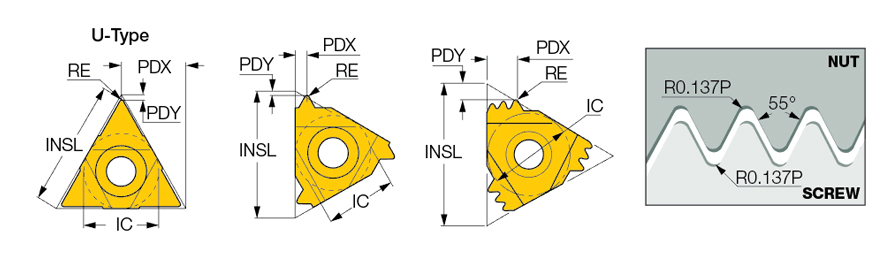

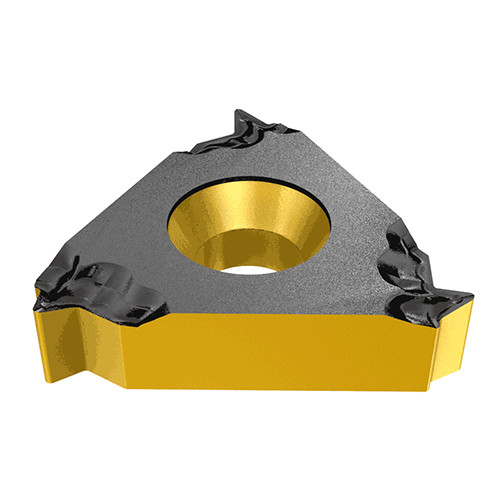

16IR 11 W IC50M
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 11 | Measurement Type | Metric |
| Corner Radius (RE) | 0.29 mm | Body Material | Carbide |
| Grade | IC50M | Thread Form Type (THFT) | WH55 |
| Coating | Uncoated | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.1 mm |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal Whitworth (BSW, BSF, BSP), full profile laydown threading inserts. IR/L - Ground periphery and rake, IRB - With a chipformer and peripherally ground, IRM - With a chipformer. Application: fittings and pipe couplings. | FamilyName | IR/L-W |
| Remarks | For Insert Identification System, click on More Info. Tolerance: medium class | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-W
BrandName
Iscar
