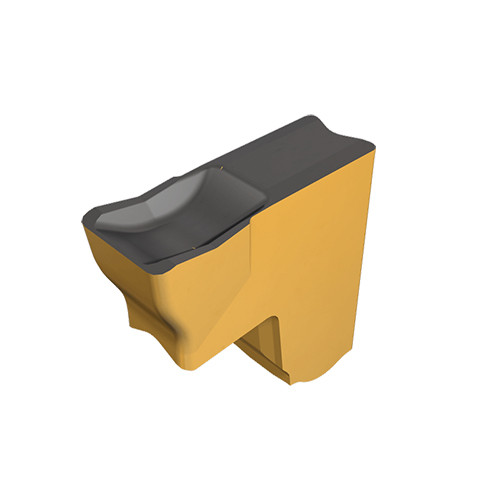

TAG N3C IC830
First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds.

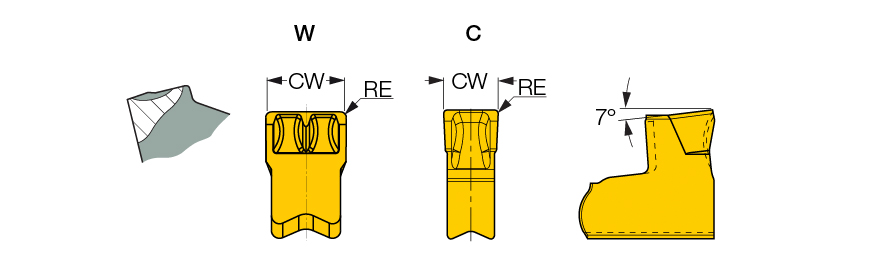

| Cutting Width (CW) | 3.05 mm | Max. Grooving Feed (fg(max)) | 0.25 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.1 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.04 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | FamilyName | TAG N-C/W/M |
| Remarks | The feed values for grade IC20 should be decreased by 50%. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0022
Name
Parting Off Indexable Inserts
FamilyName
TAG N-C/W/M
BrandName
Iscar
