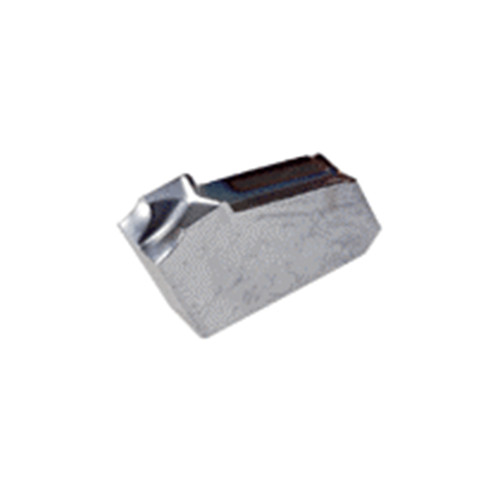

GFR 4J - 6D IC20
First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds.
| Cutting Width (CW) | 4 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Corner Radius (RE) | 0.25 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds. | FamilyName | GFR/L-J |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0039
Name
Parting Off Indexable Inserts
FamilyName
GFR/L-J
BrandName
Iscar
