DSD-E1 18.91-20.00 NOM 0

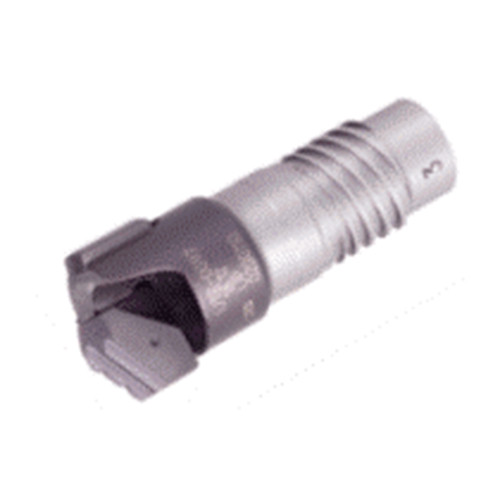

Deep single tube drills with external 2 and 4 start thread connections and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

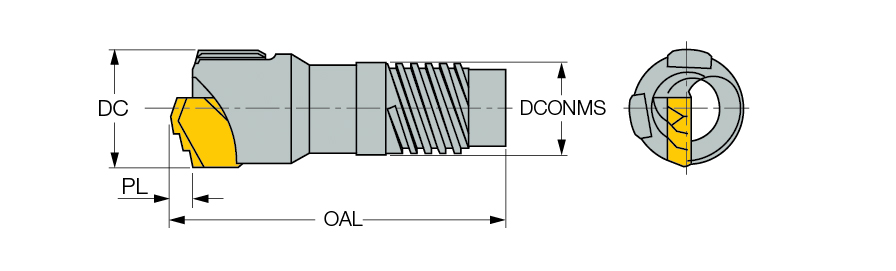

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 18.91 mm |
| Connection Diameter Machine Side (DCONMS) | 15.5 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 43.6 mm | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I3 | Unit | M |
Product Features
| Family Description | Deep single tube drills with external 2 and 4 start thread connections and a brazed single tip. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron. For quotation form and user guide, click on More Info |
