DCN 250-250-32R-10D

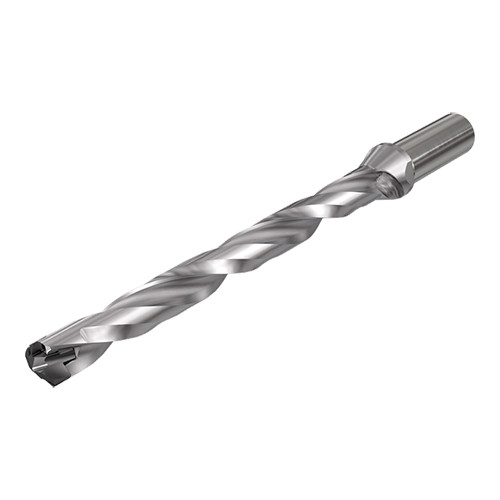

SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature a variety of standard drilling head types for drilling on different material groups.

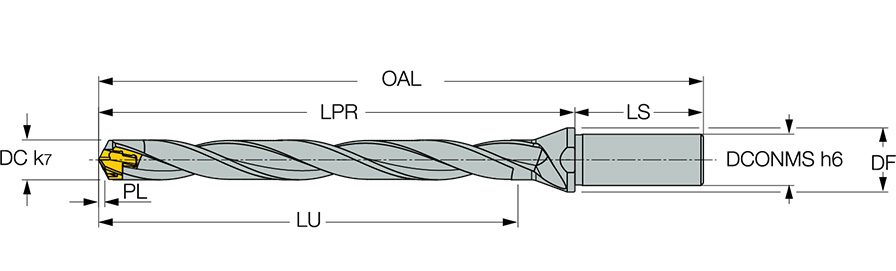

| Cutting Diameter (DC) | 25 mm | Overall Length (OAL) | 349.5 mm |
| Usable Length (LU) | 253.8 mm | Shank Length (LS) | 60 mm |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | ICP 250 |
| Insert Seat Size Code (SSC) | 25.0 | Point Length (PL) | 3.8 mm |
| Cutting Diameter Minimum (DCN) | 25 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 25.99 mm | Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 289.5 mm | Unit | M |
Product Features
| Family Description | SUMOCHAM 10xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature a variety of standard drilling head types for drilling on different material groups. | COO | Israel |
| Remarks | Prior to using the 10xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.1190
