DCNS 075-037-080B-5D

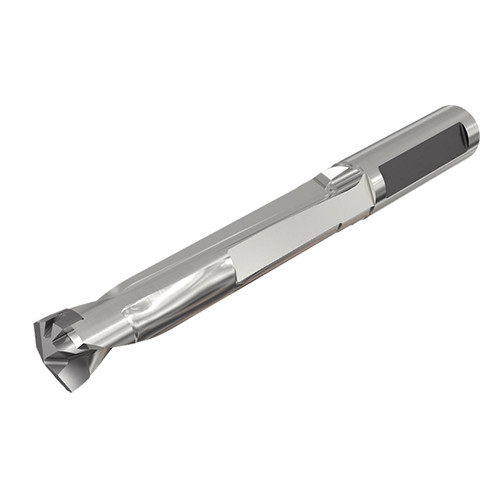

UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders.

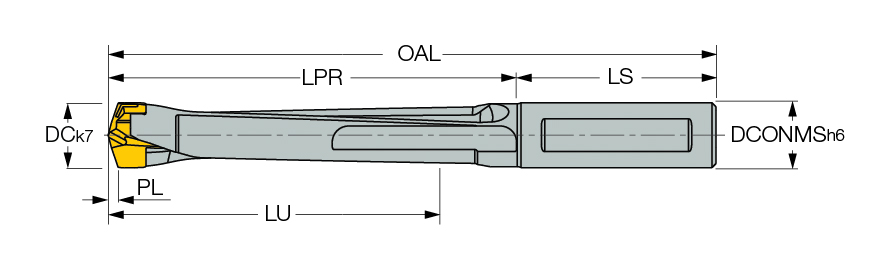

| Cutting Diameter (DC) | 7.5 mm | Overall Length (OAL) | 85.2 mm |
| Usable Length (LU) | 38.6 mm | Shank Length (LS) | 36 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Chamfering | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 075 |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Point Length (PL) | 1.1 mm |
| Insert Seat Size Code (SSC) | 7.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 7.5 mm | Flange Diameter (DF) | 0 mm |
| Cutting Diameter Maximum (DCX) | 7.99 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 49.2 mm | Unit | M |
| Functional Length (LF) | 47.84 mm |
Product Features
| Family Description | UNISUMODRILL exchangeable head drills without a flange and one flat shank, drilling depth 5xD. Suitable for chamfering holders. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0530
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
