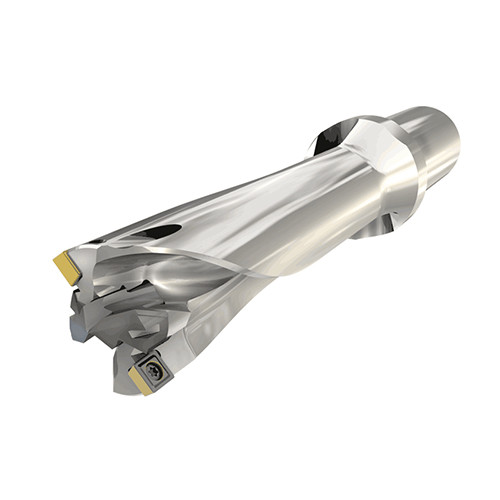

MNC 340-170 A32-180-09-5D
Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish.

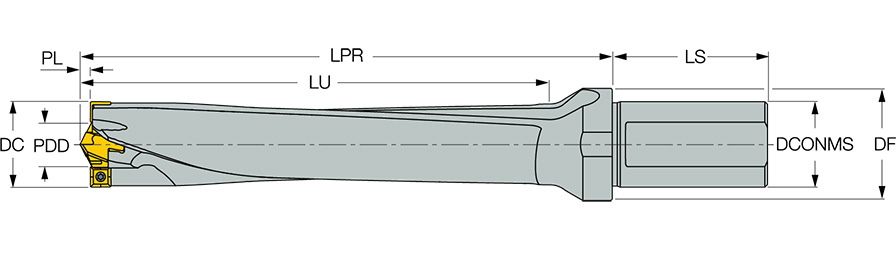

| Cutting Diameter (DC) | 34 mm | Measurement Type | Metric |
| Usable Length (LU) | 173.7 mm | Master Insert Identification (MIID) | SOGT 09T306-W |
| Application | | Drilling | | Body Material | Steel |
| Tool Type | Indexable Insert Drills | Flange Diameter (DF) | 42 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Diameter (BD) | 18 mm |
| Protruding Length (LPR) | 208.7 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Overall Length (OAL) | 268.7 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 60 mm | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish. | COO | Israel |
| Remarks | Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Weight per item
1.2700

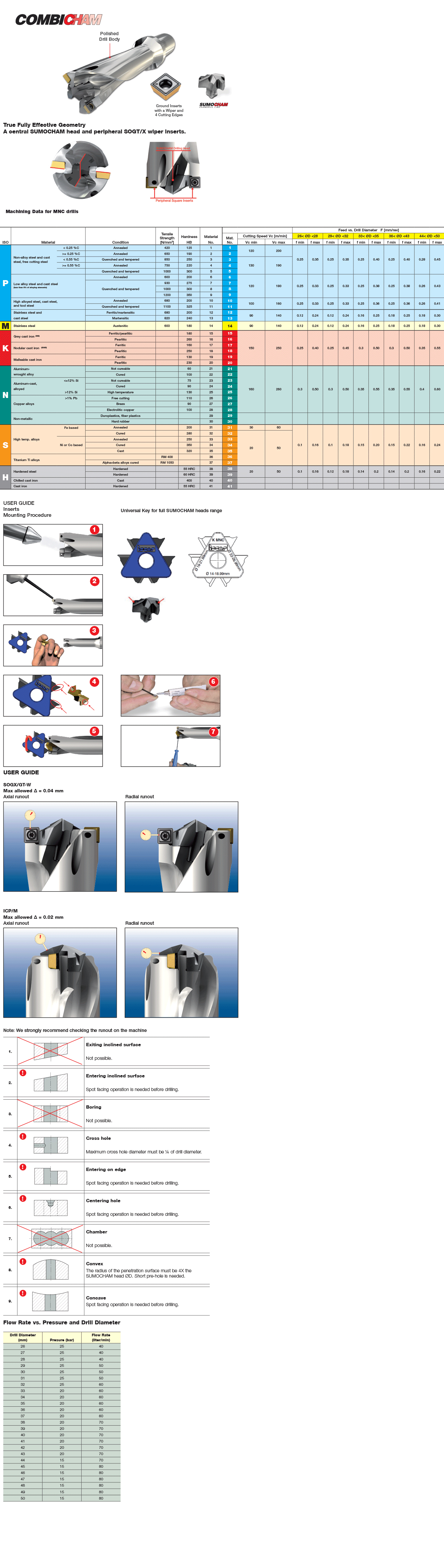

Related Documentation
Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions.
