DCN 110-033-16R-3D

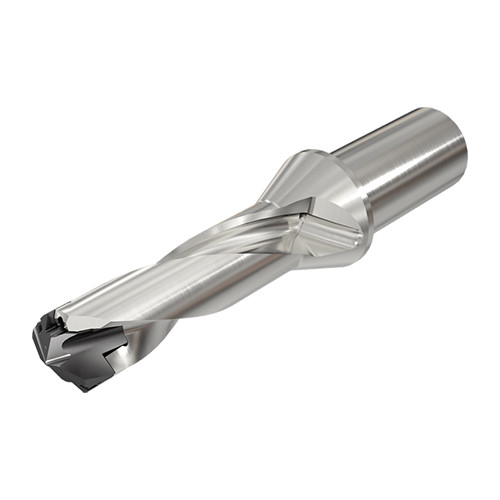

SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups

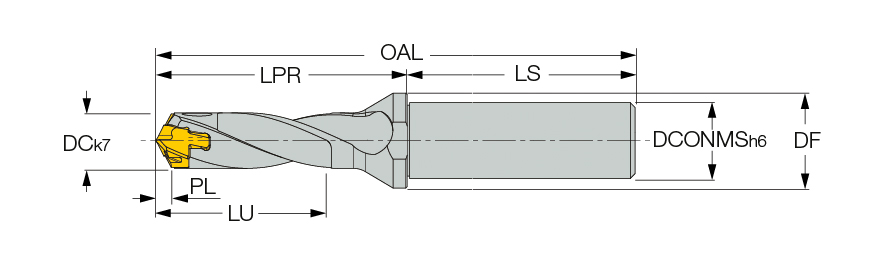

| Cutting Diameter (DC) | 11 mm | Shank Length (LS) | 48 mm |
| Usable Length (LU) | 34.67 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 110 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 1.67 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Insert Seat Size Code (SSC) | 11.0 | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Minimum (DCN) | 11 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Cutting Diameter Maximum (DCX) | 11.49 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 49.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 47.6 mm | Unit | M |
| Overall Length (OAL) | 97.6 mm |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.1350
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
