EB080A11-2C08 IC08

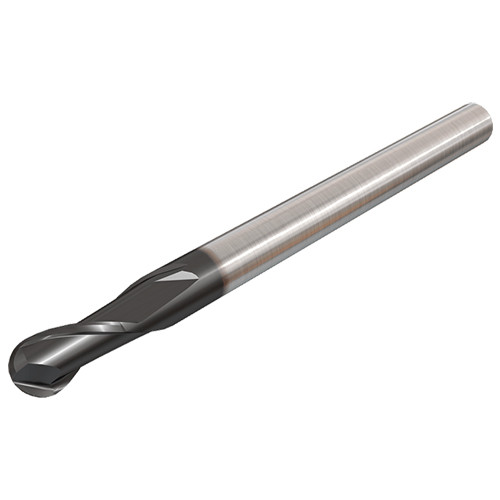

2 flute, 30° helix short solid carbide ball nose endmills.

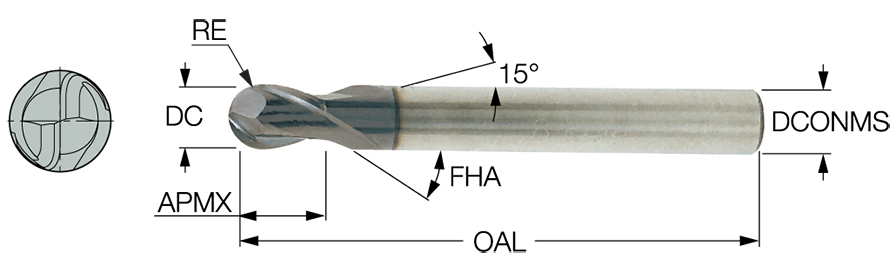

| Cutting Diameter (DC) | 8 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) | 4 mm |
| Depth of Cut Maximum (APMX) | 11 mm | Grade | IC08 |
| Overall Length (OAL) | 63 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | 2 flute, 30° helix short solid carbide ball nose endmills. | FamilyName | EB-A-2 |
| Remarks | Short and stable design for profiling (roughing). | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0560
Name
Ballnose End Mills
FamilyName
EB-A-2
BrandName
Iscar
