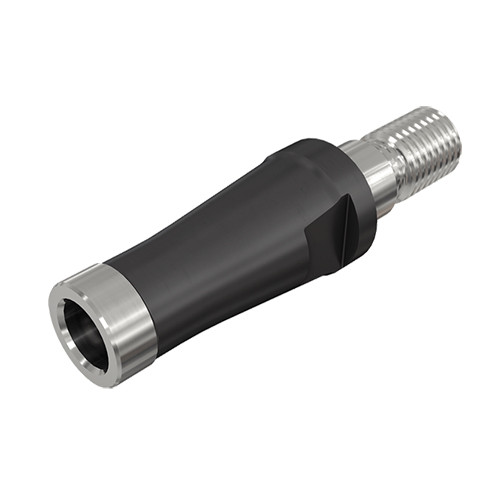

CAB M06M08
Reducers and extensions with coolant holes for the modular FLEX-FIT system.

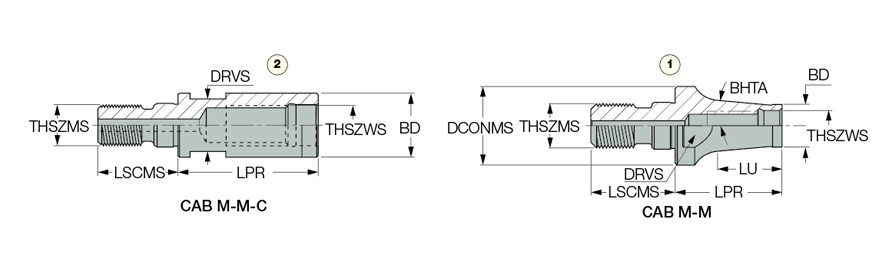

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M06 | Connection Thread Nominal Size Machine Side (THSZMS) | M08 |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Drive Size (DRVS) | 9.5 mm |
| Overall Length (OAL) | 24.8 mm | Measurement Type | Metric |
| Clamping Length Machine Side (LSCMS) | 17.5 mm | Body Material | Steel |
| Tool Type | Unique Adapter Milling System | Unit | M |
| Body Diameter (BD) | 9.7 mm |
Product Features
| Family Description | Reducers and extensions with coolant holes for the modular FLEX-FIT system. | FamilyName | CAB M-M (FLEX-FIT) |
| Remarks | For adaptation options click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0310
Name
Solid End Mill Shanks
FamilyName
CAB M-M (FLEX-FIT)
BrandName
Iscar
