MM S-B-L140-C16-T08

Name: MM S-B-L140-C16-T08
Brand: MULTIMASTER
SKU: ISC3102511
Price: 257.29 AUD
Availability: InStock

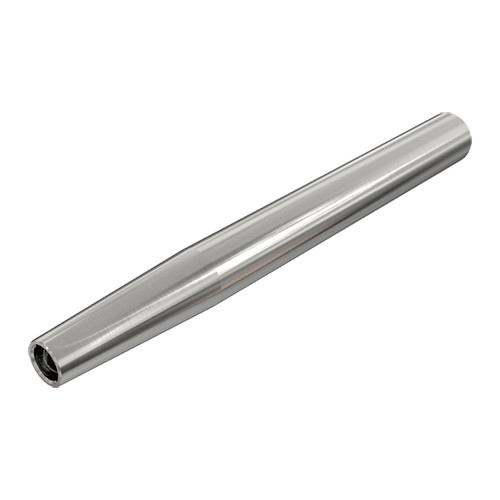

MULTI-MASTER, 85° conical shanks for interchangeable milling heads.

Item # ISC3102511

Brand: Iscar

Mfr#: 3102511

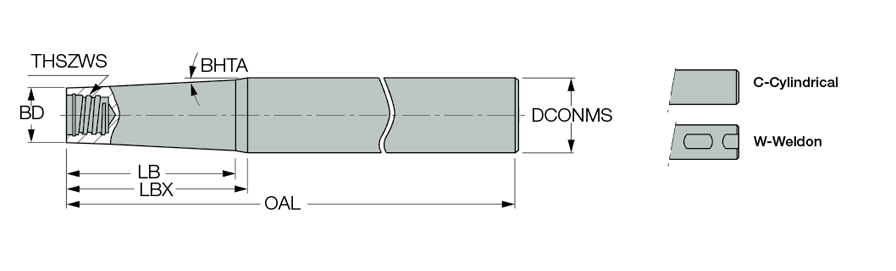

Connection Thread Nominal Size Workpiece Side (THSZWS)	T08	Functional Length (LF)	140 mm
Connection Diameter Machine Side (DCONMS)	16 mm	Measurement Type	Metric
Overall Length (OAL)	140 mm	Rotational Speed Maximum (RPMX)	25590 Rev/min
Body Length Maximum (LBX)	22 mm	Body Material	Steel
Tool Type	Cylindrical Shanks	Connection Code Machine Side (CCMS)	Cylindrical
Body Diameter (BD)	11.6 mm	Unit	M
Body Length (LB)	19.3 mm

Product Features

Family Description	MULTI-MASTER, 85° conical shanks for interchangeable milling heads.	FamilyName	MM S-B (85° conical shanks)
Remarks	For adaptation click on More Info Do not apply lubricant to the threaded connection	BrandName	Iscar
COO	Israel

Weight per item

0.2070

Name

Solid End Mill Shanks

FamilyName

MM S-B (85° conical shanks)

BrandName

Iscar
