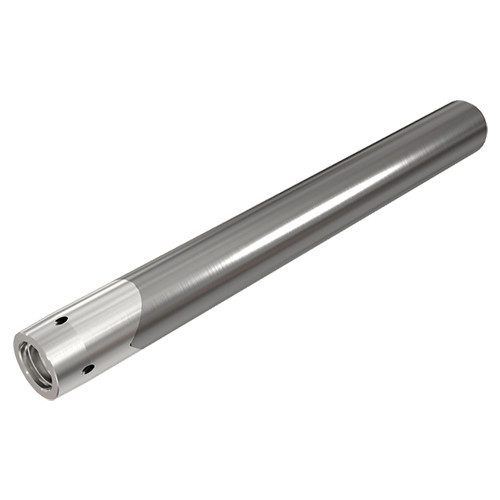

MM GRT-095-T06
Mount Slitting and Grooving Interchangeable Milling Heads
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.52 mm | Body Material | Carbide |
| Overall Length (OAL) | 80 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Length Maximum (LBX) | 64 mm | Unit | M |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | Mount Slitting and Grooving Interchangeable Milling Heads | FamilyName | MM GRT (shanks) |
| Remarks | MM GRT... shanks serve mainly for MM GRIT... slitting heads. When mounting other types of milling heads, do not exceed maximum specified depth of cut for the particular milling head. Since the shank diameter is not relieved, it may touch a wall on the workpiece being machined. Use carbide shanks for groove milling heads and for applications requiring high rigidity and processes. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0850
Name
Solid End Mill Shanks
FamilyName
MM GRT (shanks)
BrandName
Iscar
