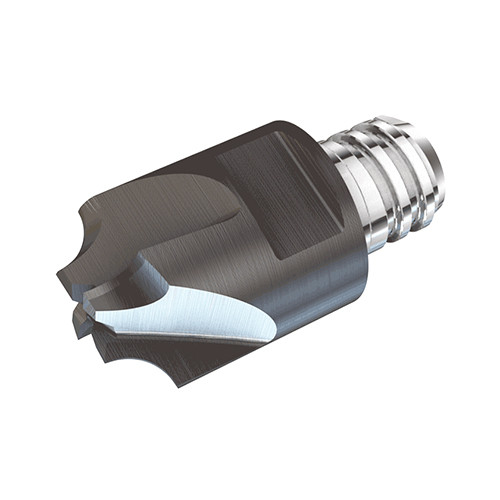

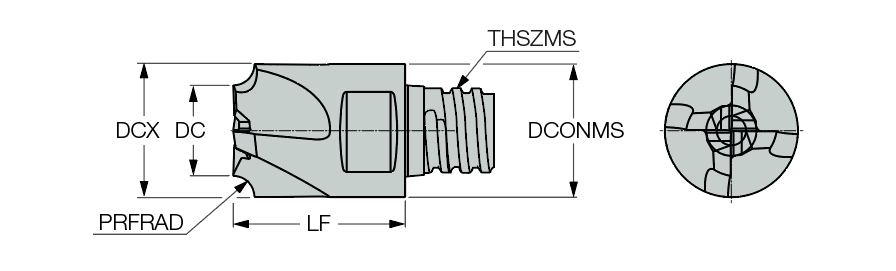

MM ER3.0/122-6.5-4T08 IC908
| Application | | Corner Rounding | | Overall Length (OAL) | 23.15 mm |
| Cutting Diameter (DC) | 6.5 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 3 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid corner rounding endmills |
| Cutting Diameter Maximum (DCX) | 12.7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12.7 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 16.5 mm | Unit | M |
Product Features
| Family Description | Interchangeable 4 flute solid carbide corner round milling heads | FamilyName | MM ER |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0350
Name
Solid End Mill Heads
FamilyName
MM ER
BrandName
Iscar
