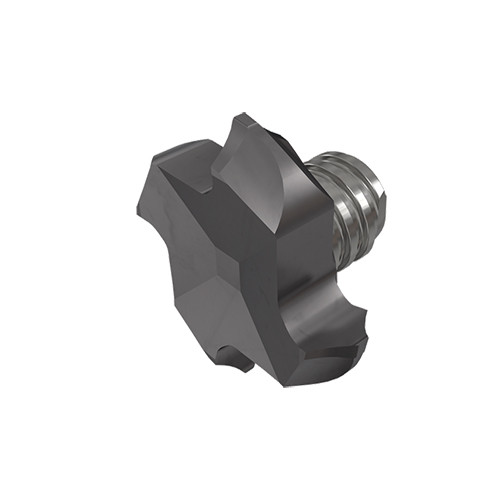

MM SS22M150Z1720-4T08 IC908
Interchangeable solid carbide milling heads with MM threaded connections for milling involute spline shafts according to DIN 5480 class 9 . Pressure angle 30° . involute gear Profile for 1 and 1.5mm module sizes and 17-25 teeth range.
| Application | | Gear profile | | Coating | TiAlN |

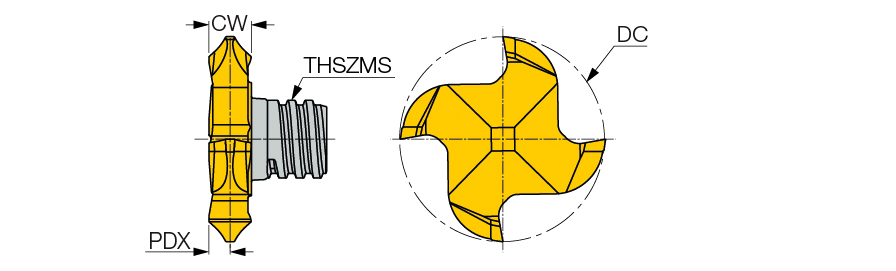

| Cutting Diameter (DC) | 21.7 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Tool Type | Solid chamfering endmills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Body Material | Carbide |
| Cutting Width (CW) | 5.4 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 13.5 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable solid carbide milling heads with MM threaded connections for milling involute spline shafts according to DIN 5480 class 9 . Pressure angle 30° . involute gear Profile for 1 and 1.5mm module sizes and 17-25 teeth range. | FamilyName | MM SS |

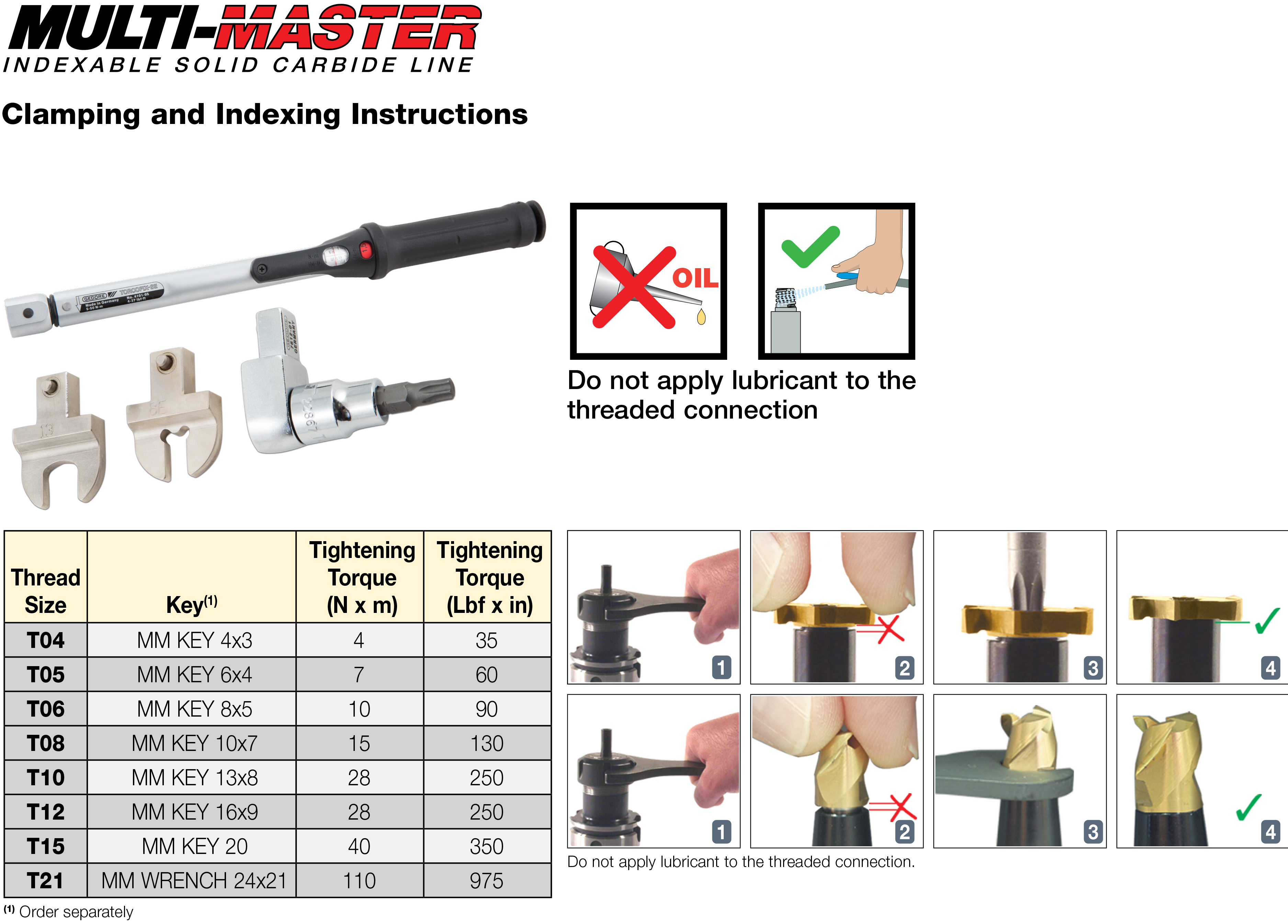

| Remarks | Tightening torque 1500 Nxcm Do not apply lubricant to the threaded connection. For clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0270
Name
Solid End Mill Heads
FamilyName
MM SS
BrandName
Iscar
