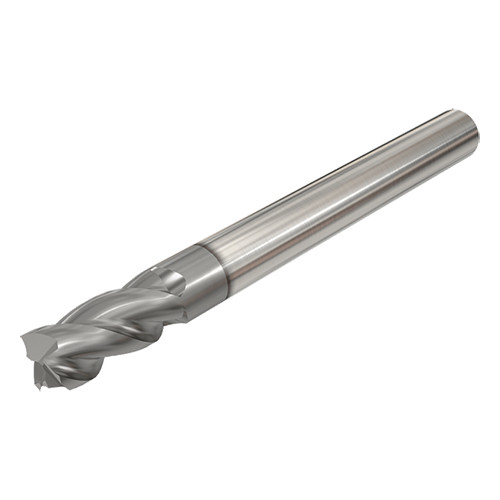

ECI-B-3 500-1.0-W500 IC900
3 flute, 45° helix, medium length, slot / drill solid carbide endmills.

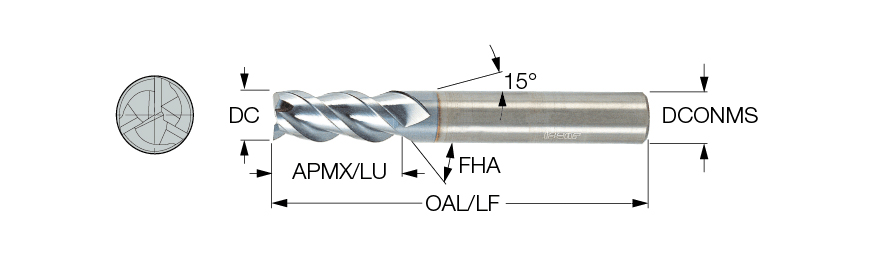

| Cutting Diameter (DC) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Weldon | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 1″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | 3 flute, 45° helix, medium length, slot / drill solid carbide endmills. | FamilyName | ECI-B-3 |
| Remarks | Excellent for deep slotting and shouldering | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2668
Name
Square & Corner Radius End Mills
FamilyName
ECI-B-3
BrandName
Iscar
