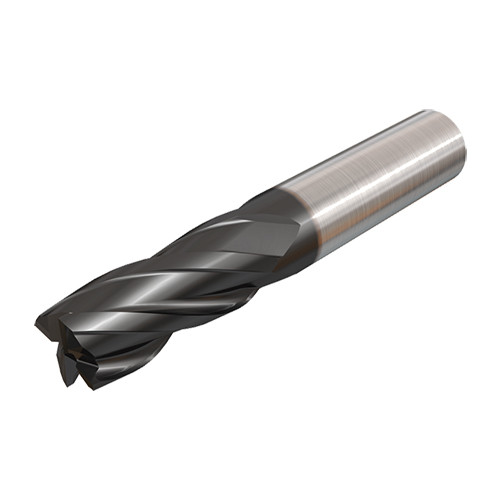

EC080A20-4C08R0.8 IC900
4 flute, 30° helix medium length solid carbide endmills with different radii dimensions

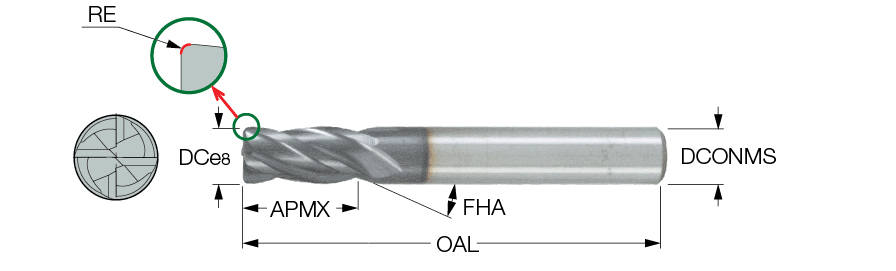

| Cutting Diameter (DC) | 8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 20 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 63 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 20 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Corner Radius (RE) | 0.8 mm |
Product Features
| Family Description | 4 flute, 30° helix medium length solid carbide endmills with different radii dimensions | FamilyName | EC-A-4/4R |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0480
Name
Square & Corner Radius End Mills
FamilyName
EC-A-4/4R
BrandName
Iscar
