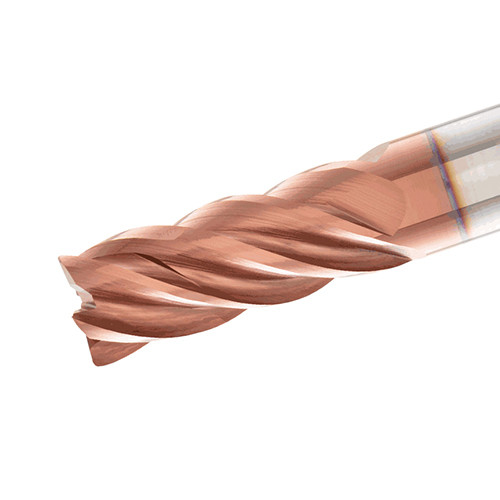

‎ECYI-S5R375-750C015CFS3.0 IC608

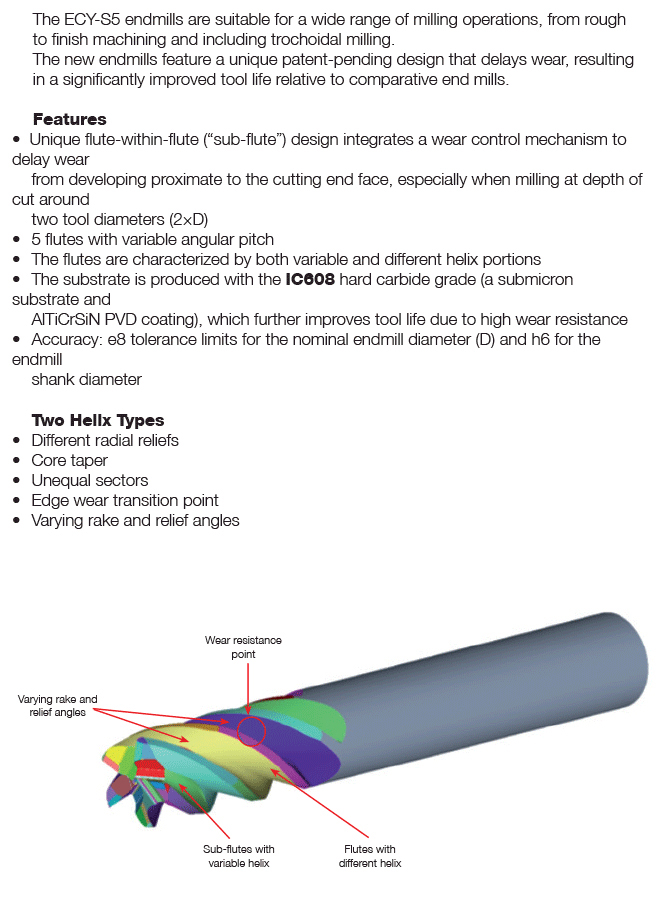

5 flute endmills with different helix for milling austenitic, duplex, cast and precipitation hardened stainless steels.

Item # ISC3385630

Brand: Iscar

Mfr#: 3385630

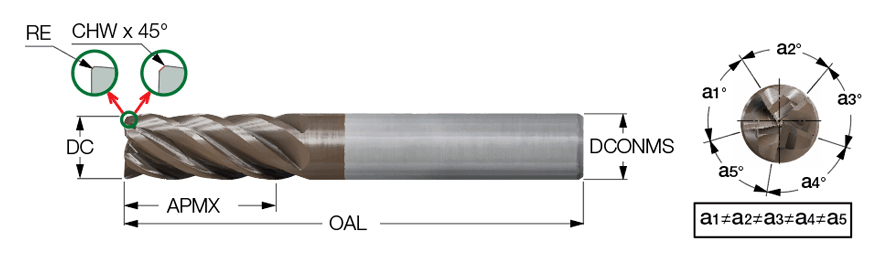

Cutting Diameter (DC)	3/8″	Application	\| Helical Interpolation \| Rampdown \| Shouldering \| Slotting \|
Connection Diameter Machine Side (DCONMS)	3/8″	Corner Radius (RE)	0.015″
Depth of Cut Maximum (APMX)	3/4″	Ramping Angle Maximum (RMPX)	5 Degrees
Overall Length (OAL)	3″	Grade	IC608
Cutting Edge Material	Carbide	Tool Type	Solid carbide non center cutting endmills 90°
Coating	AlTiCrSiN	Coolant Supply Property (CSP)	External
Flute Count (NOF)	5	Body Material	Carbide
Flute Helix Angle (FHA)	37 Degrees	Decimal Equivalent	0.375″
Shank Type	Round	Measurement Type	Inch
End Shape	Corner Radius	Connection Code Machine Side (CCMS)	Cylindrical
Usable Length (LU)	3/4″	Shank Diameter Tolerance (TCDMM)	h6
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|	Unit	I

Product Features

Family Description	5 flute endmills with different helix for milling austenitic, duplex, cast and precipitation hardened stainless steels.	FamilyName	ECYI-S5-CFS
COO	Israel	BrandName	Iscar

Weight per item

0.1676

Name

Square & Corner Radius End Mills

FamilyName

ECYI-S5-CFS

BrandName

Iscar
