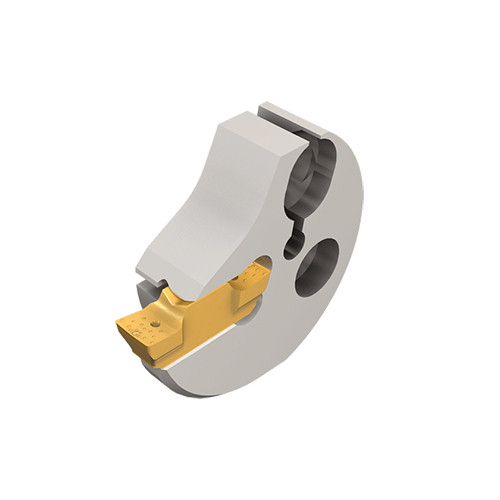

GEAIR 20-3
Internal grooving and turning adapters for GEMI and GEPI inserts.

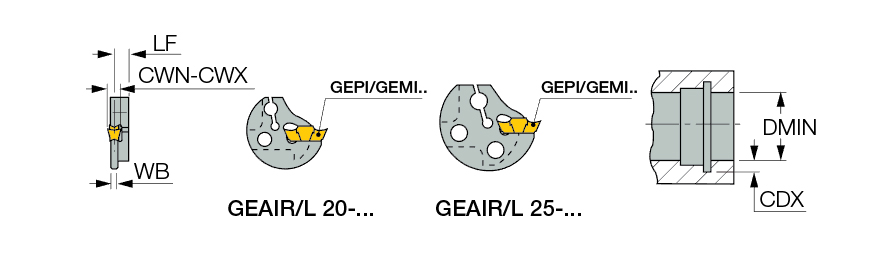

| Cutting Width Minimum (CWN) | 2.4 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Width Maximum (CWX) | 3 mm | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 3 mm | Tool Type | Indexable Turn & Groov Tools |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
| Functional Width (WF) | 3.6 mm | Unit | M |
Product Features
| Family Description | Internal grooving and turning adapters for GEMI and GEPI inserts. | FamilyName | GEAIR/L |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0110
Name
Groove/Turn Indexable Holders
FamilyName
GEAIR/L
BrandName
Iscar
