GHIC 32-50

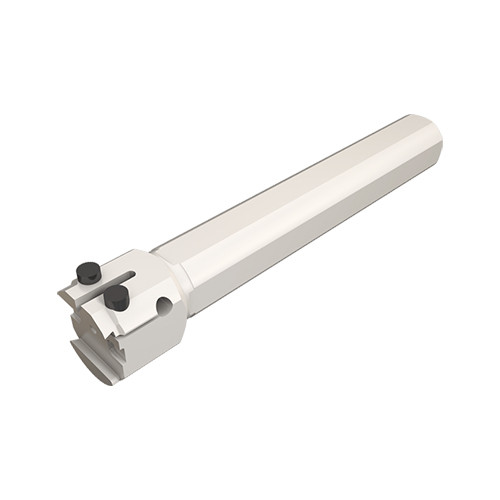

CUT-GRIP holders for internal grooving and turning blades, DMIN=50 mm.

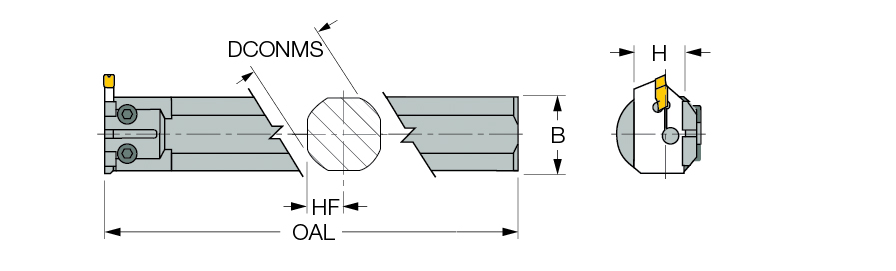

| Shank Height (H) | 26 mm | Body Material | Steel |
| Shank Width (B) | 29 mm | Tool Type | Round Shanks |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Overall Length (OAL) | 220 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
Product Features
| Family Description | CUT-GRIP holders for internal grooving and turning blades, DMIN=50 mm. | FamilyName | GHIC-50 |
| Remarks | For both right and left hand applications | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4700
Name
Groove/Turn Indexable Holders
FamilyName
GHIC-50
BrandName
Iscar
Related Documentation

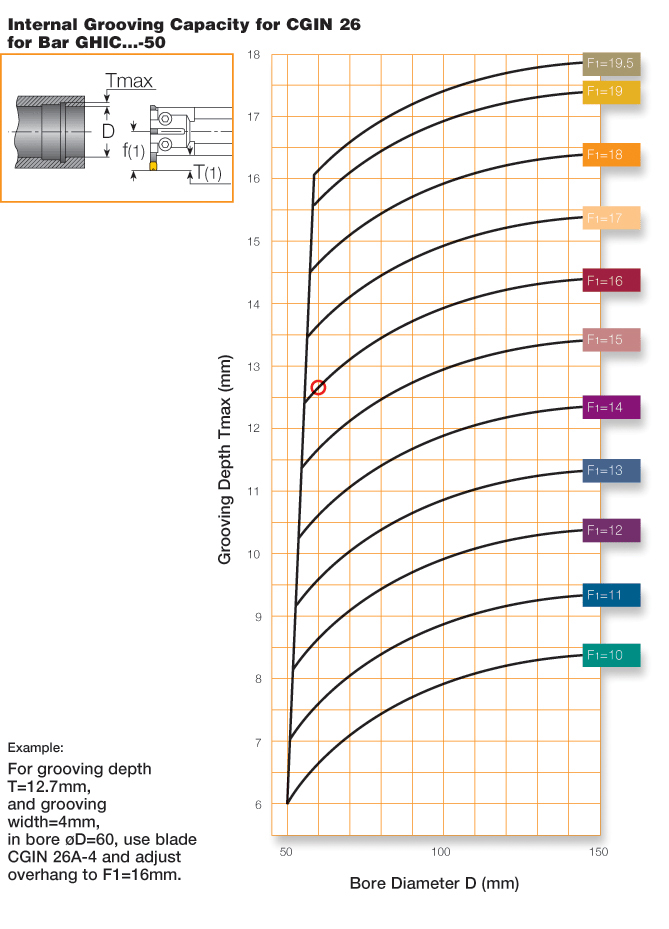

Holder bar for indexable blades. Adjustable extension, right- and left-hand applications. For bore diameters down to 50 mm, bar GHIC-50 with blades for GIPI/GIFI inserts.
