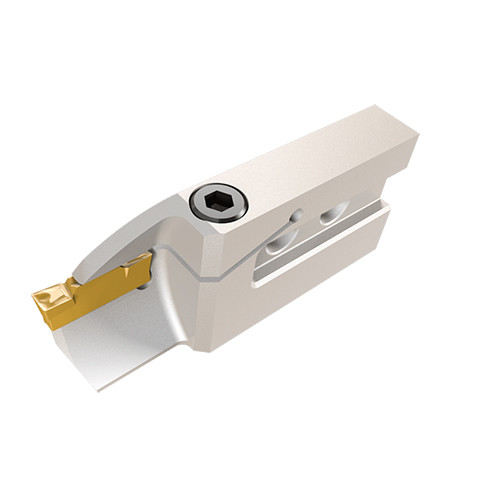

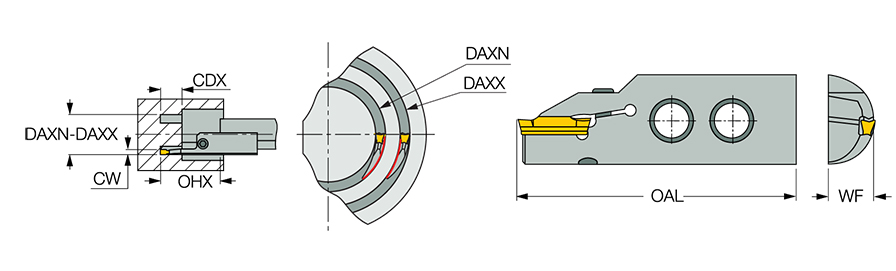

HFAIR 60-4T25
| Cutting Depth Maximum (CDX) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 75 mm | Functional Width (WF) | 15.3 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 67 mm | Unit | M |
Product Features
| Family Description | Adapters for internal face grooving and turning, Dmin 34 mm | FamilyName | HFAIR/L-4 |

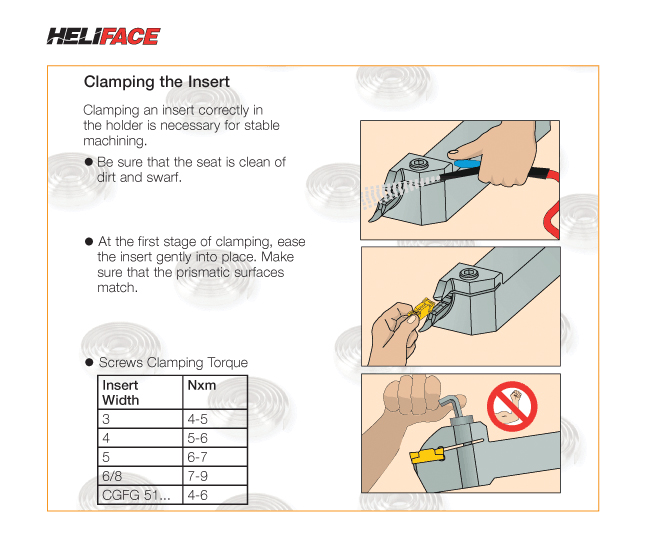

| Remarks | For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR, IH-TNFPAD, IH-HFPAD For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1590
Name
Face Groove/Turn Indexable Holders
FamilyName
HFAIR/L-4
BrandName
Iscar
