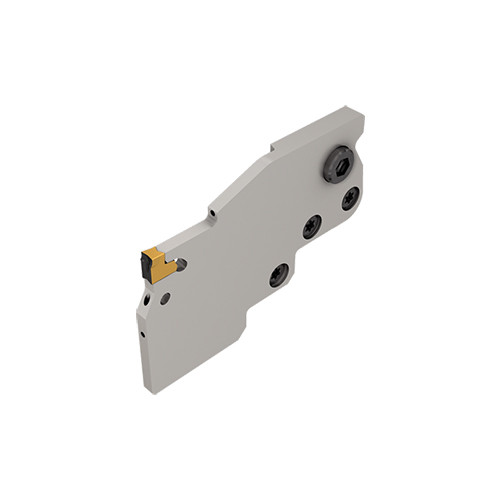

TAGPAD-Y-D82R-4C
Y-axis adapters for parting & grooving on multi-task machines & turning centers, with JHP channels and TANG-GRIP inserts.
| Body Width (WB) | 3.4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 3.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 77.4 mm | Measurement Type | Metric |
| Overall Height (OAH) | 52 mm | Functional Width (WF) | 4.3 mm |
| Functional Length (LF) | 74.4 mm | Body Width_2 (WB_2) | 6 mm |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 82.82 mm |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Y-axis adapters for parting & grooving on multi-task machines & turning centers, with JHP channels and TANG-GRIP inserts. | FamilyName | TAGPAD-Y-JHP |

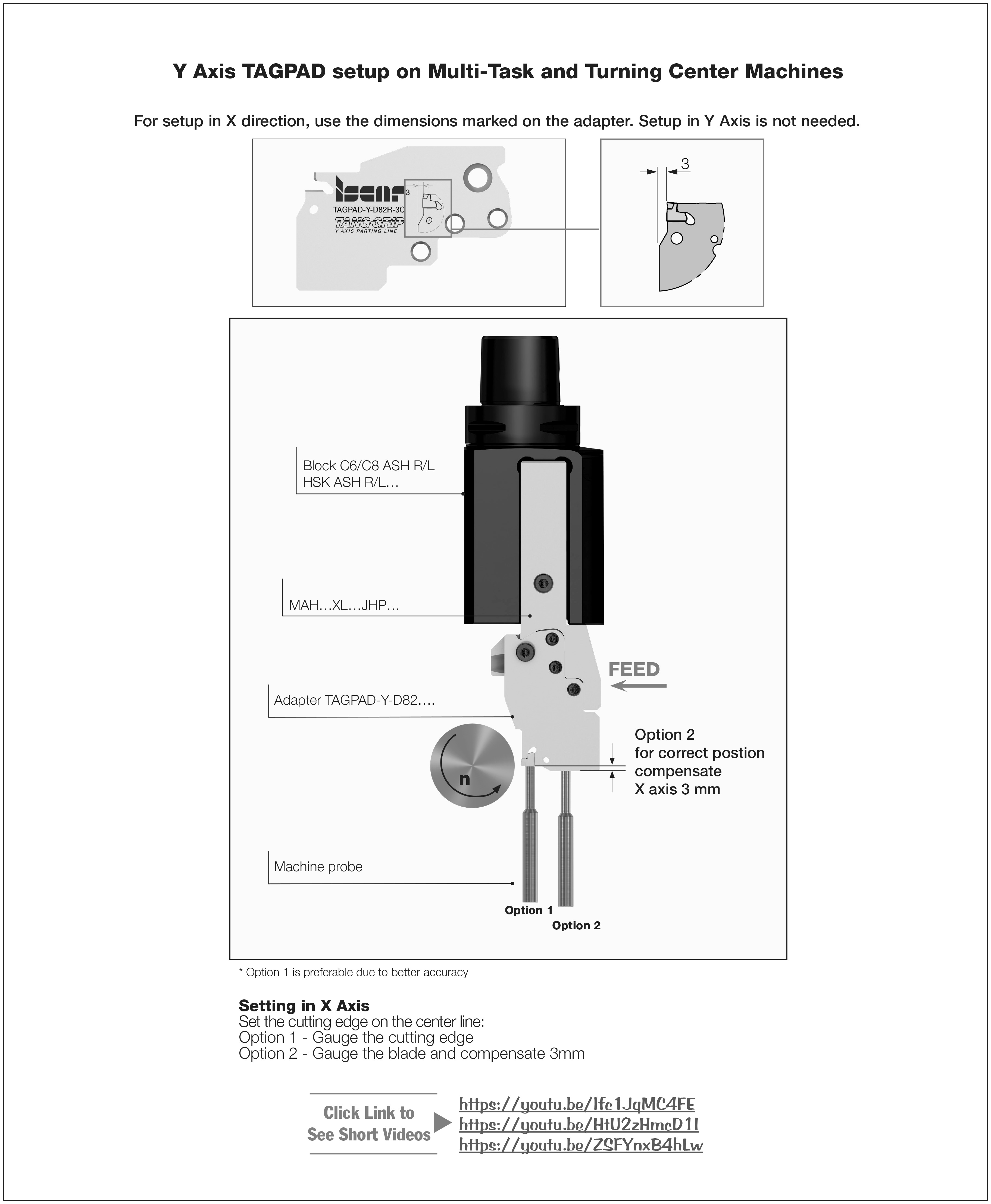

| Remarks | For set up procedure click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1080
Name
Parting Off Indexable Holders
FamilyName
TAGPAD-Y-JHP
BrandName
Iscar
