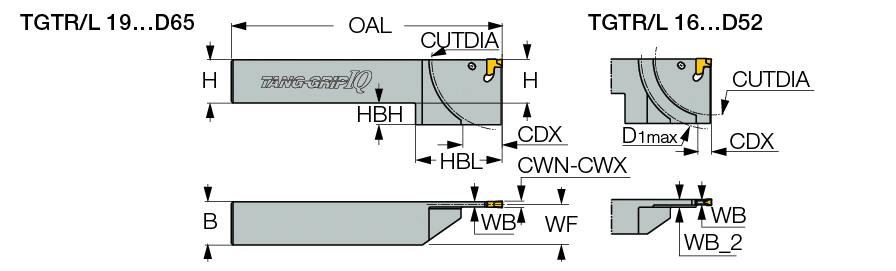

| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.65 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 52 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 2.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Tool Assembly Length (LTA) | 43.8 mm |
| Head Length (LH) | 40 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features

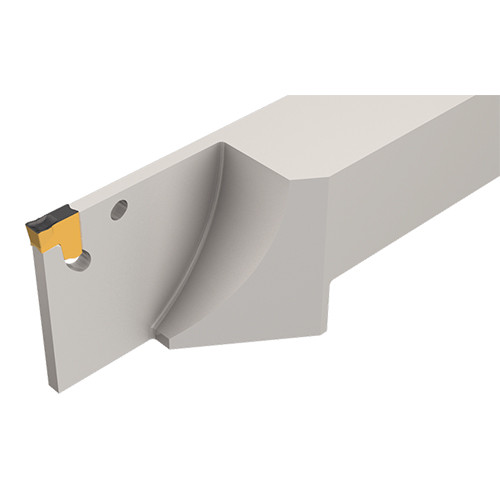

| Family Description | Integral shank parting and grooving tools with reinforced Blades. Designed mainly for parting of relatively large diameters on sub spindle machines which carry either 16 or 20 mm square shank tools. | FamilyName | TGTR/L-D |

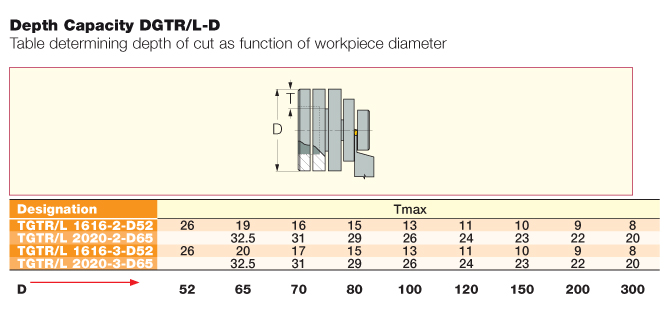

| Remarks | For depth of cut vs. workpiece diameter, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2550
Name
Parting Off Indexable Holders
FamilyName
TGTR/L-D
BrandName
Iscar
