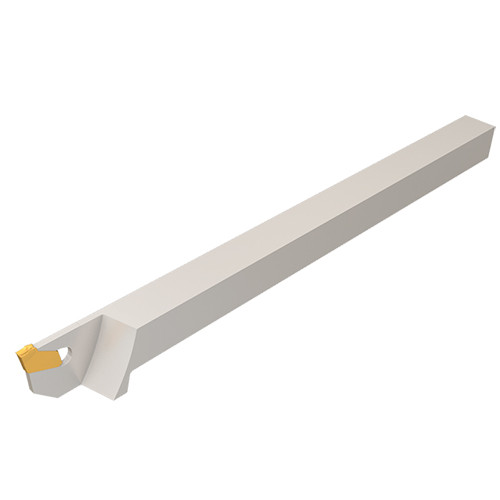

SGAFR 8-1.2-D18
SELF-GRIP integral shank tool for Swiss automatic machines.

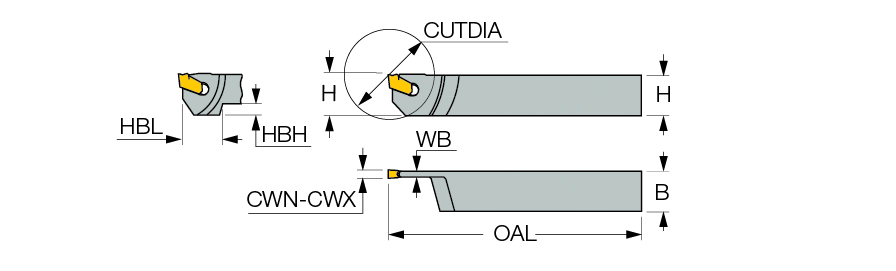

| Shank Height (H) | 8 mm | Body Material | Steel |
| Shank Width (B) | 8 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 0.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 18 mm |
| Cutting Width Minimum (CWN) | 1.2 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1.2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Tool Assembly Length (LTA) | 28.94 mm |
| Head Length (LH) | 12 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | SELF-GRIP integral shank tool for Swiss automatic machines. | FamilyName | SGAFR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0820
Name
Parting Off Indexable Holders
FamilyName
SGAFR/L
BrandName
Iscar
