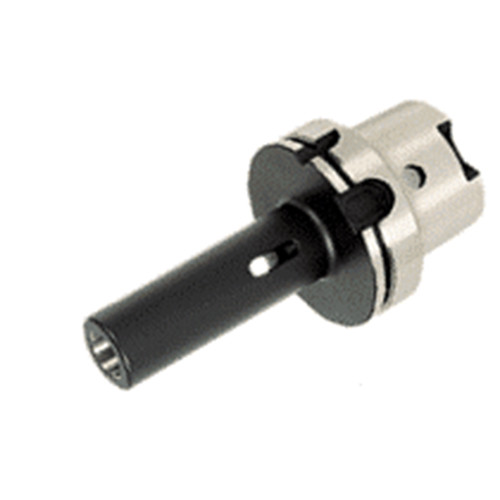

HSK A63 MT3X140
DIN 6383/DIN 228-2 form D tang Morse taper adapters with DIN 69893/A HSK tapered shanks.

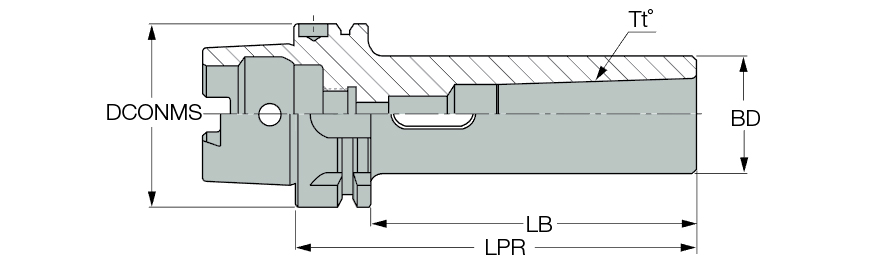

| Shank Size (SS) | 63 | Tool Type | HSK |
| Protruding Length (LPR) | 140 mm | Measurement Type | Metric |
| Body Length (LB) | 114 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
Product Features
| Family Description | DIN 6383/DIN 228-2 form D tang Morse taper adapters with DIN 69893/A HSK tapered shanks. | FamilyName | HSK A-MT |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.5300
Name
Drill Chucks & Adapters
FamilyName
HSK A-MT
BrandName
Iscar
