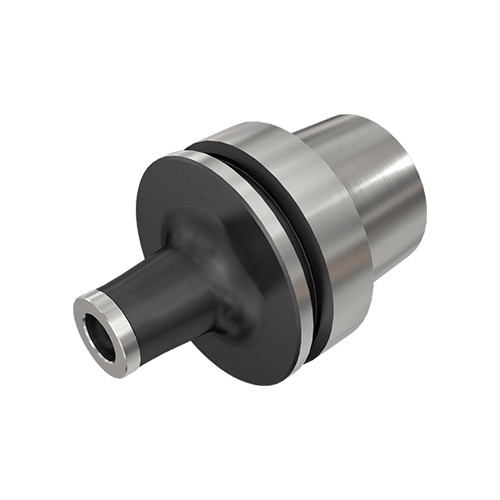

HSK E40 ODP12X103
FLEXFIT Threaded Adaptation with HSK DIN69893/E tapered shanks.
| Shank Size (SS) | 40 | Tool Type | HSK |
| Protruding Length (LPR) | 103 mm | Measurement Type | Metric |
| Body Length (LB) | 75 mm | Body Material | Steel |
| Body Diameter (BD) | 31 mm | Connection Code Machine Side (CCMS) | HSK |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 |
Product Features
| Family Description | FLEXFIT Threaded Adaptation with HSK DIN69893/E tapered shanks. | FamilyName | HSK E-ODP |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For adaptation Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5520
Name
Drill Chucks & Adapters
FamilyName
HSK E-ODP
BrandName
Iscar
