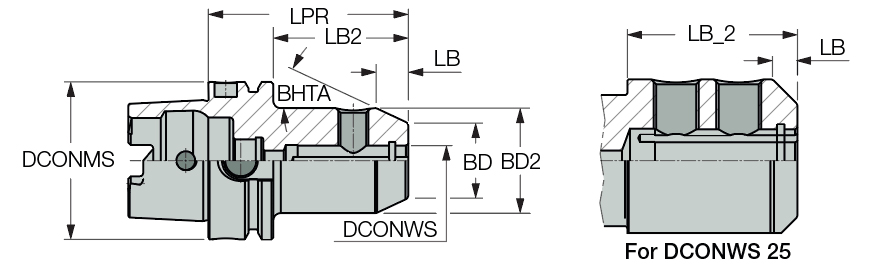

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Tool Type | HSK |
| Body Diameter (BD) | 30 mm | Body Length (LB) | 12.9 mm |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Measurement Type | Metric | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 63 | Unit | M |
Product Features
| Family Description | DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks and jet coolant grooves along the shank bore | FamilyName | HSK A-EM-CX |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | China |
Shipping Info
Weight per item
1.1940
Name
End Mill Holders
FamilyName
HSK A-EM-CX
BrandName
Iscar
