| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Shank Size (SS) | 50 |
| Body Diameter (BD) | 48 mm | Tool Type | BT |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features

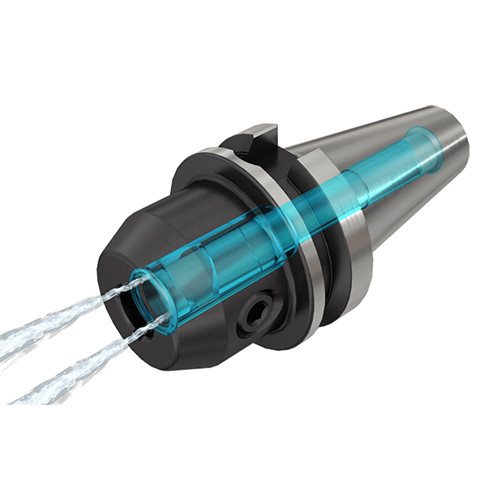

| Family Description | DIN6359 / DIN 1835 form B Weldon endmill holders with jet coolant grooves along the shank for BT MAS-403 tapered shanks | FamilyName | BT-EM-CX |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
4.1640
Name
End Mill Holders
FamilyName
BT-EM-CX
BrandName
Iscar
