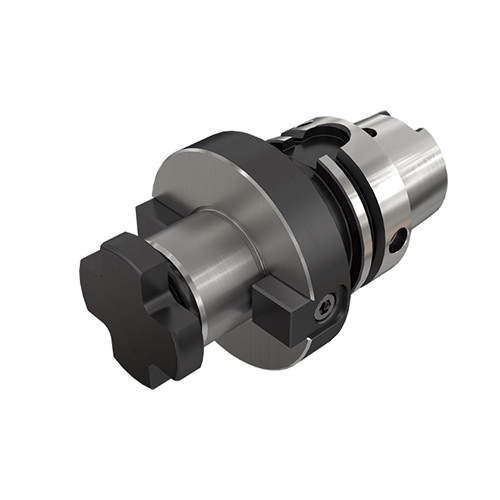

HSK A63 SEM40X60
ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks.

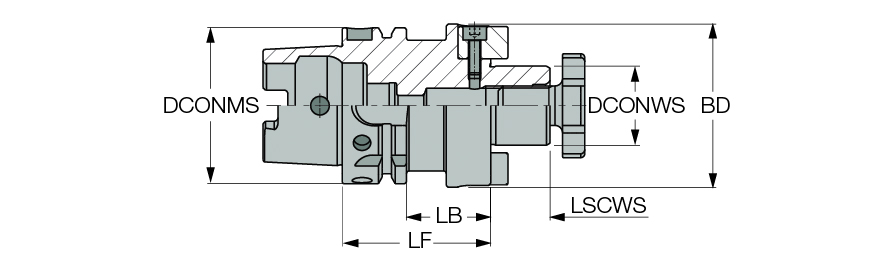

| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | HSK |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Measurement Type | Metric |
| Shank Size (SS) | 63 | Body Material | Steel |
| Functional Length (LF) | 60 mm | Connection Code Machine Side (CCMS) | HSK |
| Body Diameter (BD) | 82 mm | Unit | M |
| Clamping Length Workpiece Side (LSCWS) | 27 mm |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-SEM |

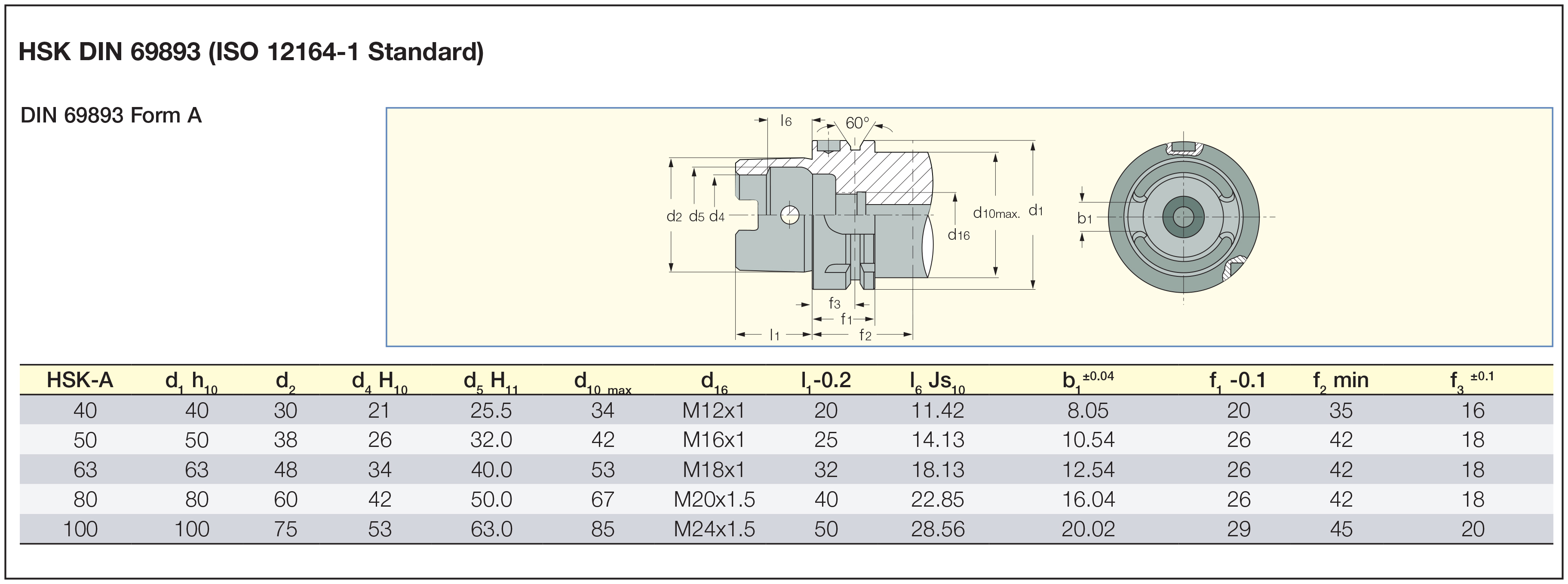

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions,Click on More Info. For internal coolant through the holder, the related COOLANT SET to be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
2.1190
Name
Shell Mill Holders
FamilyName
HSK A-SEM
BrandName
Iscar
