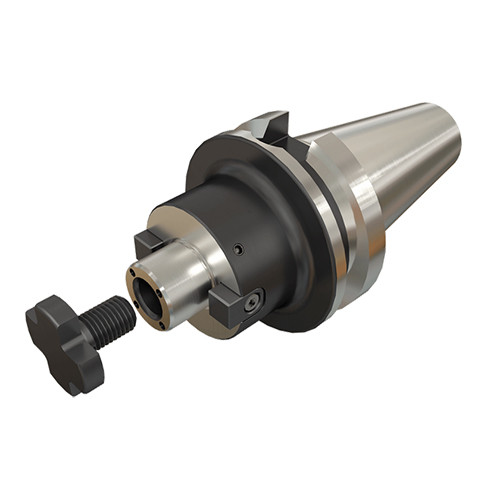

BT40 SEM 16X60C

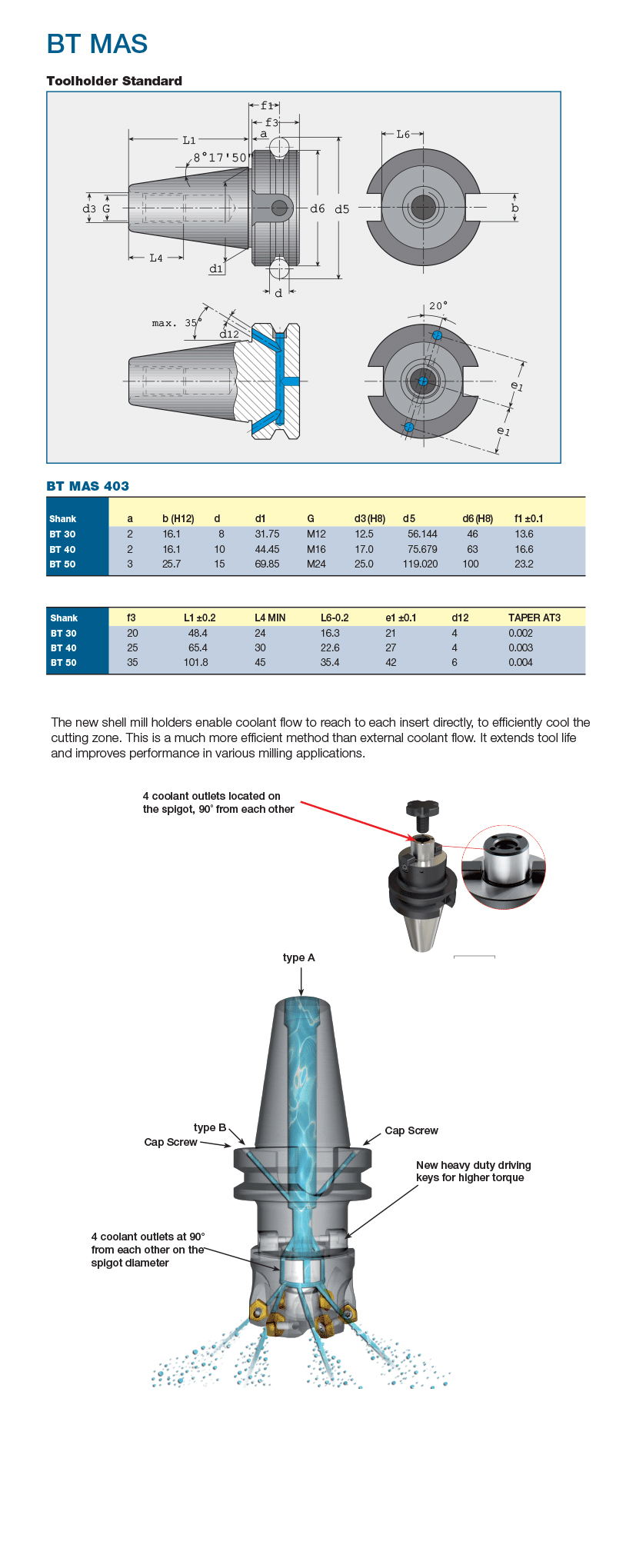

ISO 3937 shell mill holders with coolant holes and BT MAS-403 ADB tapered shanks.

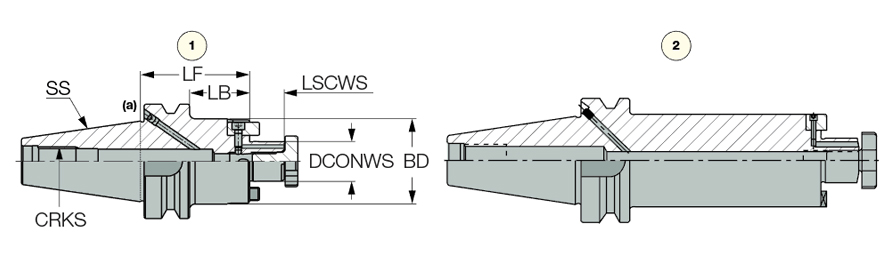

| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | BT |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Functional Length (LF) | 60 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | ISO 3937 shell mill holders with coolant holes and BT MAS-403 ADB tapered shanks. | FamilyName | BT-SEM-C |
| Remarks | (a) For coolant through flange the plug screw must be removed from the flange cooling hole (use a 2 mm hex key). | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.3210
Name
Shell Mill Holders
FamilyName
BT-SEM-C
BrandName
Iscar
