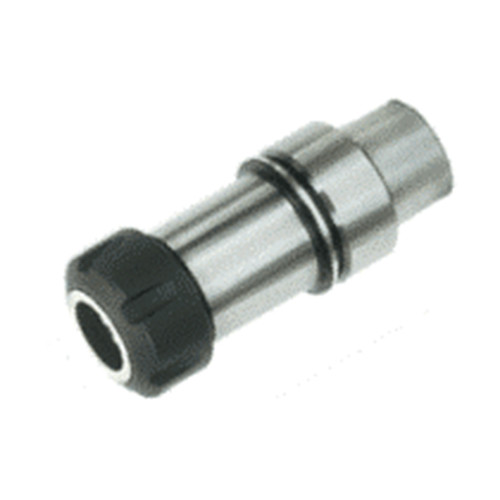

HSK E50 ER25X80
DIN6499 ER collet chucks with HSK DIN69893 form E tapered shanks.

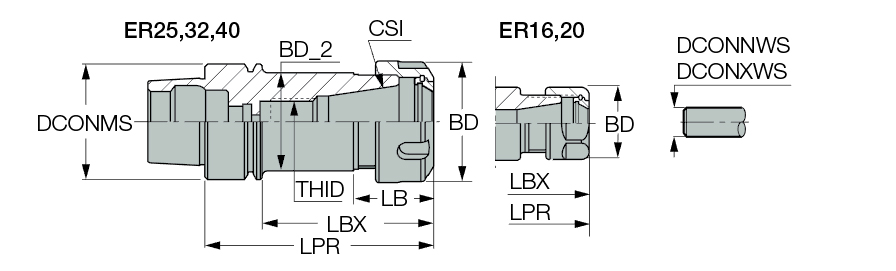

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Size (CSI) | ER25 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Diameter (BD) | 42 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK | Unit | M |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form E tapered shanks. | FamilyName | HSK E-ER |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7290
Name
Collet Chucks
FamilyName
HSK E-ER
BrandName
Iscar

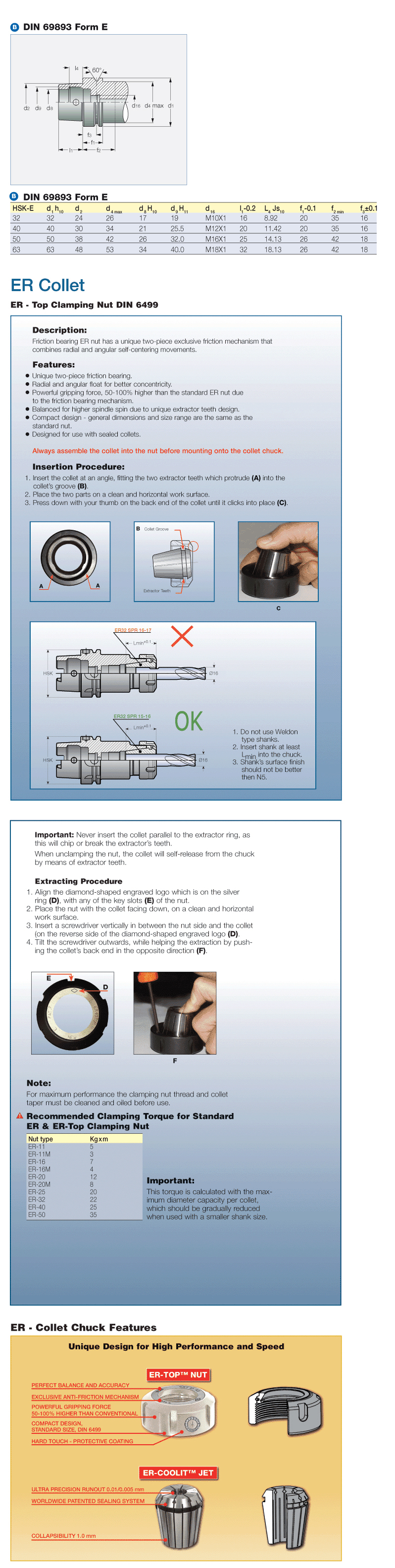

Related Documentation
