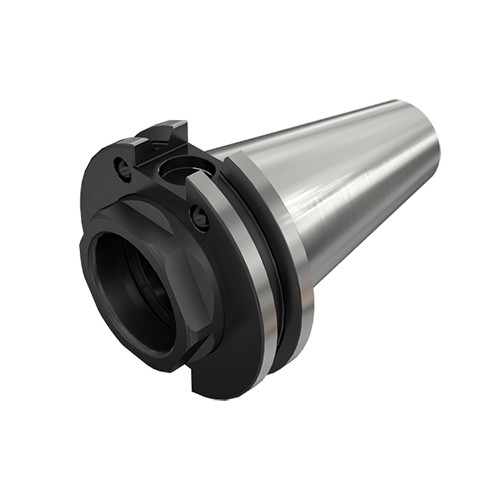

CAT40 ER32 SHORT
SHORTIN, DIN 6499 ER short collet chucks with Caterpillar form AD tapered shanks.
| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Body Diameter (BD) | 1.575″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1.124″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40″ | Connection Code Machine Side (CCMS) | CAT |
| Tool Type | DIN 69871 | Unit | I |
Product Features
| Family Description | SHORTIN, DIN 6499 ER short collet chucks with Caterpillar form AD tapered shanks. | FamilyName | CAT-ER-SHORT |

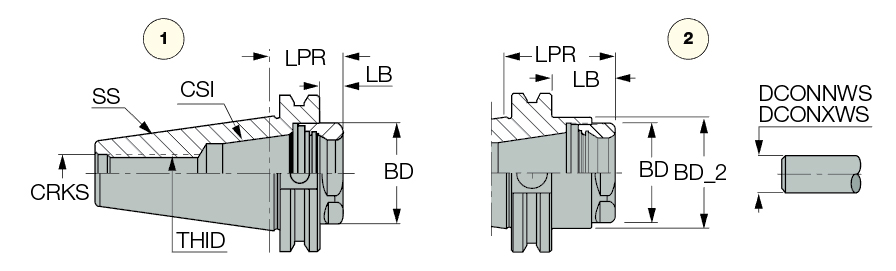

| Remarks | Toolholders according to Fig 1 can be used only on vertical machines with an umbrella type ATC (cannot be used with arm type ATC). | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
1.4991
Name
Collet Chucks
FamilyName
CAT-ER-SHORT
BrandName
Iscar
