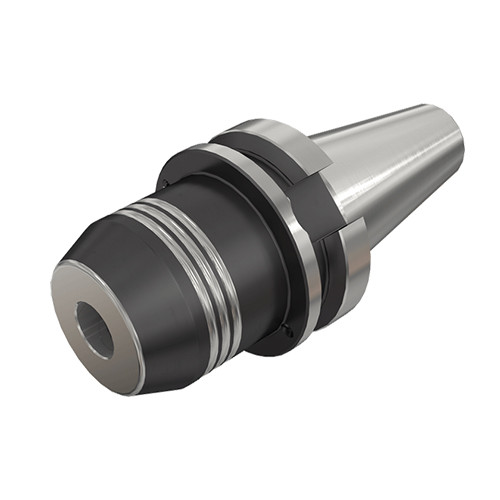

BT40 HYDRO 20X72.5 HD
Heavy duty, short hydraulic chucks with BT form ADB shanks

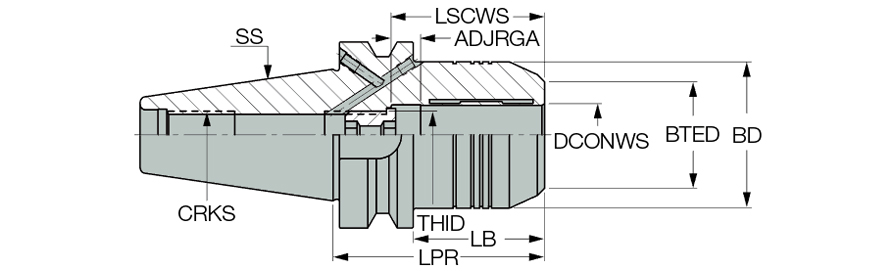

| Body Length (LB) | 45.5 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Body Material | Steel |
| Body Diameter (BD) | 49.25 mm | Connection Code Machine Side (CCMS) | BT |
| Protruding Length (LPR) | 72.5 mm | Unit | M |
| Shank Size (SS) | 40.0 |
Product Features
| Family Description | Heavy duty, short hydraulic chucks with BT form ADB shanks | FamilyName | BT-HYDRO HD |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
1.4840
Name
Hydraulic Holders
FamilyName
BT-HYDRO HD
BrandName
Iscar
