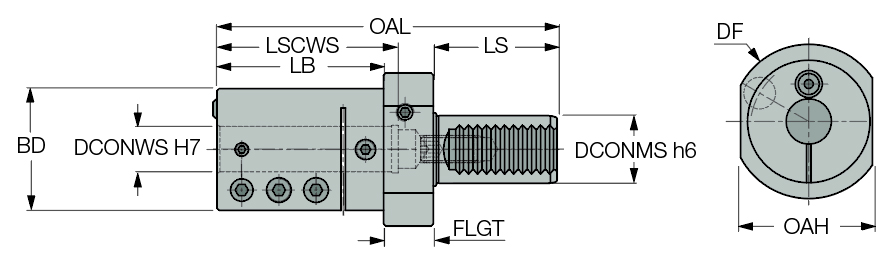

| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Shank Length (LS) | 63 mm |
| Clamping Length Workpiece Side (LSCWS) | 80 mm | Flange Diameter (DF) | 83 mm |
| Body Diameter (BD) | 54 mm | Overall Height (OAH) | 65 mm |
| Body Length (LB) | 74 mm | Overall Length (OAL) | 159 mm |
| Measurement Type | Metric | Unit | M |
Product Features

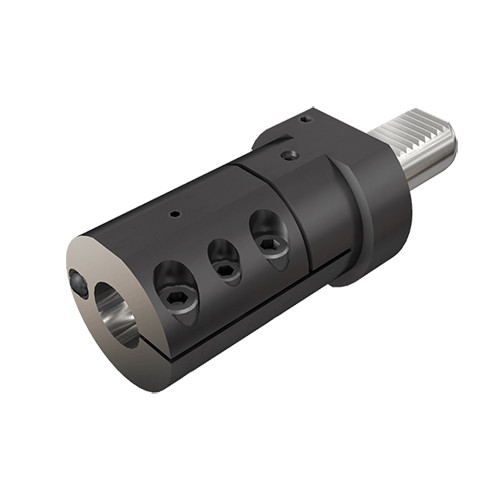

| Family Description | VDI holders for Anti-Vibration tools | FamilyName | VDI AV-JHP |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
2.5340
Name
Adapters
FamilyName
VDI AV-JHP
BrandName
Iscar
