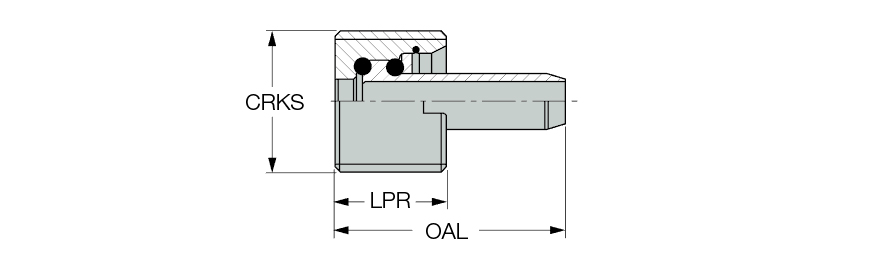

| Overall Length (OAL) | 31 mm | Measurement Type | Metric |
| Application | | Collets & Accessories | | Body Material | Steel |
| Tool Type | Accessories and Devices | Unit | M |
Product Features

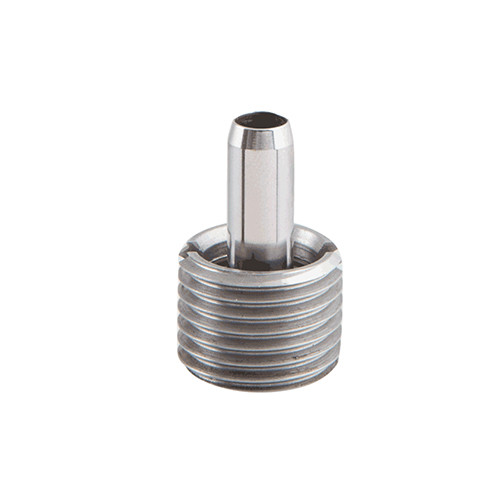

| Family Description | Cooling tubes for CAMFIX (ISO 26623-1) shanks. | FamilyName | COOLING TUBE C# |
| Remarks | Refer to machine manual before mounting Camfix Cooling Tube Check that clamping drawbar has O-ring inside Apply Loctite 542 (or equivalent) on coolant tube thread to secure/seal the thread Mount cooling tube (ONLY) by using Cooling Tube C# wrench with mount side | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
0.0250
Name
Cooling System Accessories
FamilyName
COOLING TUBE C#
BrandName
Iscar
