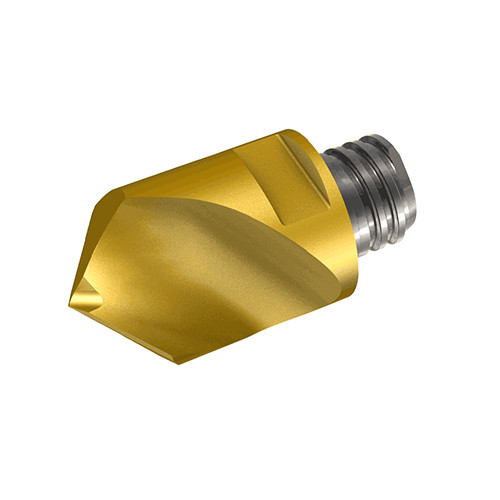

MM ECD-06X90-2T04 IC908
NC Spot Drills for Accurate Hole Location without the need for a Bushing Guide.

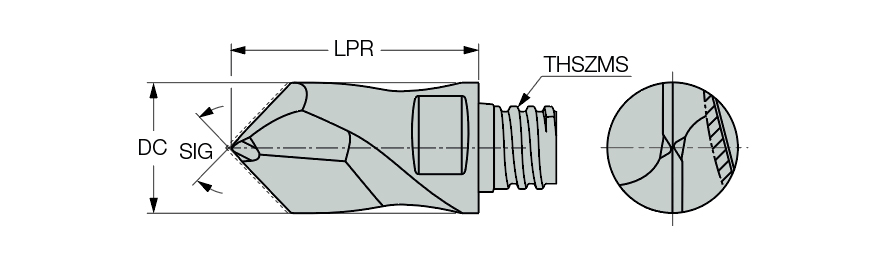

| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Tool Type | center & Spot Drills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T04 | Cutting Length | 11 mm |
| Coating | TiAlN | Grade | IC908 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Drilling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | NC Spot Drills for Accurate Hole Location without the need for a Bushing Guide. | COO | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Weight per item
0.0105
Related Documentation
NC spotting drills are intended mainly for pre-drilling to accurately locate a hole without using guide bushing. A thin web at the point prevents drill walking during machining. In addition, these drills are suitable for drilling shallow-depth holes. Due to the 90-degree point angle, the heads can be also used for O.D. hole chamfering.
