MM ECDF100A120-2T06 IC908

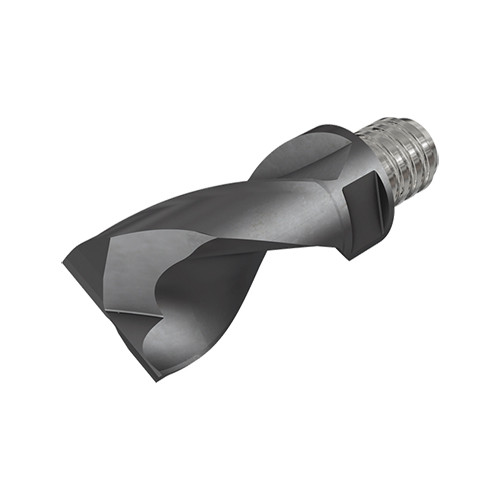

MULTI-MASTER exchangeable solid carbide flat bottom drill heads

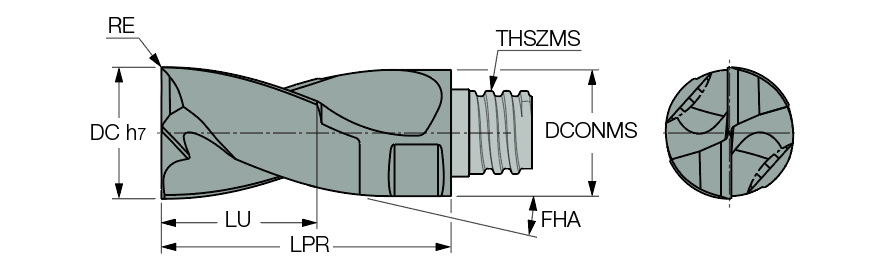

| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 22 mm | Tool Type | solid carbide Drills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Grade | IC908 |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | Drilling | | Unit | M |
Product Features
| Family Description | MULTI-MASTER exchangeable solid carbide flat bottom drill heads | COO | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Weight per item
0.0230
