MTECZ 10086D24 12W IC908

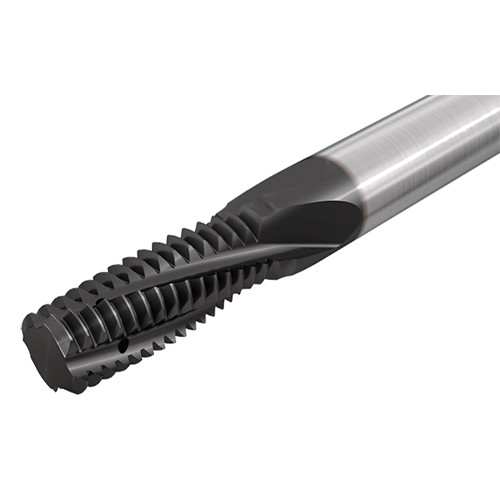

Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external Whitworth thread profile.

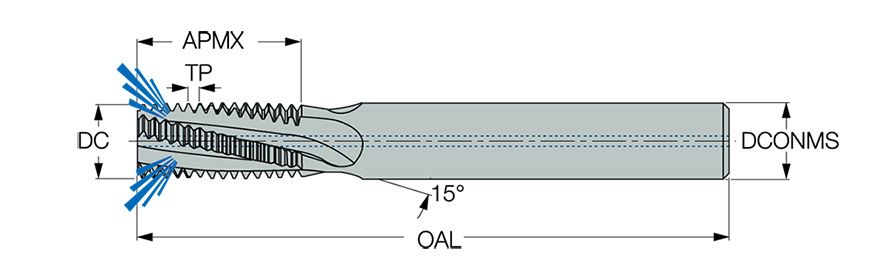

| Threads per Inch (TPI) | 12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 8.6 mm | Grade | IC908 |
| Overall Length (OAL) | 73 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 24.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | WH55 |
| Coating | TiAlN | Unit | M |
| Application | | External Thread Milling | Internal Thread Milling | |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external Whitworth thread profile. | COO | Israel |
| Remarks | With internal coolant hole Internal & External tolerance: B.S.84 - Medium class |
Shipping Info
Weight per item
0.0640
