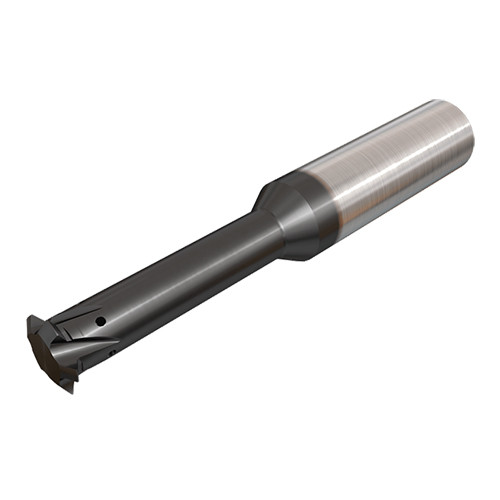

MTECI 0605D20 A60 IC908
60° partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required.
| Thread Size | =>6 | Pitch TPI External (TPI Ext) | 64-32 |
| Thread Standard | THFT | | Pitch Internal | 0.50-0.80 mm |

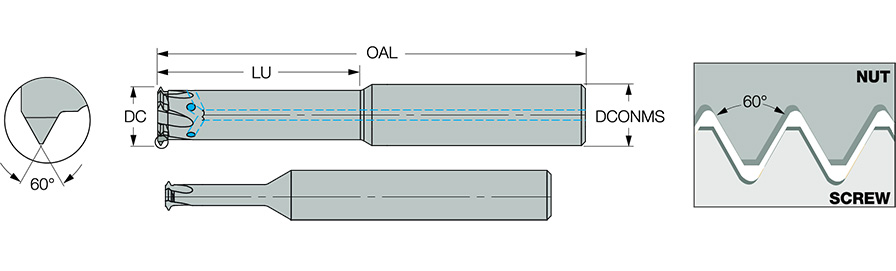

| Connection Diameter Machine Side (DCONMS) | 6 mm | Pitch External | 0.4-0.8 mm |
| Cutting Diameter (DC) | 5 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 58 mm | Usable Length (LU) | 20 mm |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Grade | IC908 |
| Shank Type | Round | Tool Type | Solid carbide thread mills |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Pitch TPI Internal (TPI Int) | 56-28 | Unit | M |
Product Features
| Family Description | 60° partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required. | COO | Israel |
| Remarks | For (a) and detailed cutting recommendations, click on More Info DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Weight per item
0.0200
