MTECS 06024C9 0.5ISO IC908

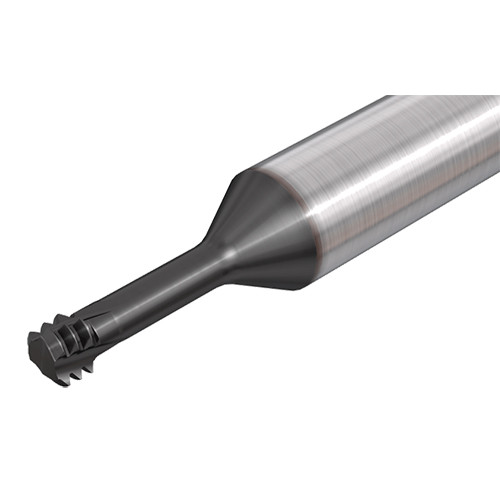

Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread.

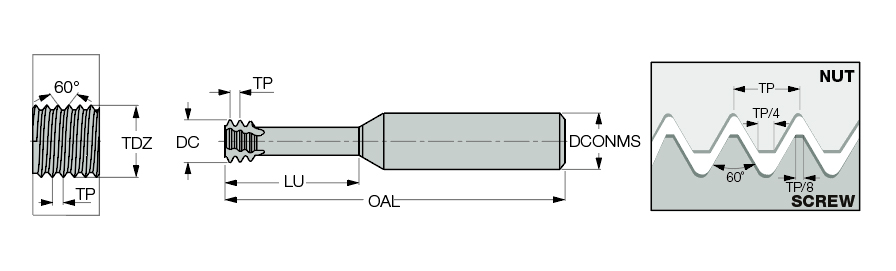

| Thread Size | M3 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.5 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Usable Length (LU) | 9.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 2.37 mm | Grade | IC908 |
| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | COO | Israel |
Shipping Info
Weight per item
0.0230
