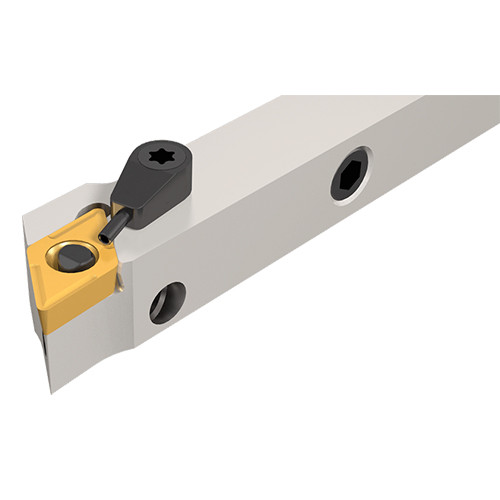

PDJCL 08-3S-JHP
Lever lock tools with channels for high pressure coolant for 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.

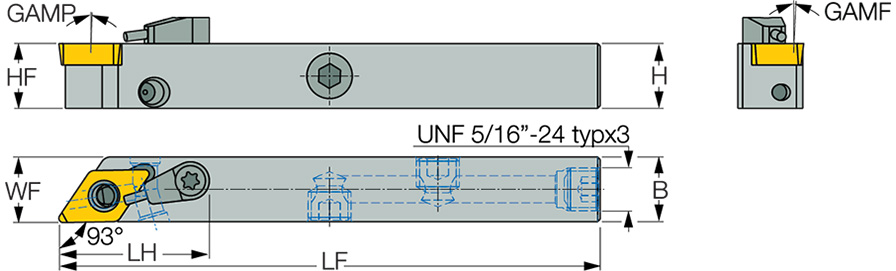

| Shank Height (H) | 1/2″ | Application | | Ext. 55° Diamond 93° Approach | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 4″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.1″ | Body Material | Steel |
| Functional Width (WF) | 0.51″ | End Chamfer Angle (ECA) | 93 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DCMT 3.. | Unit | I |
Product Features
| Family Description | Lever lock tools with channels for high pressure coolant for 55° positive rhombic inserts. The tools were designed for Swiss automatic machines. | FamilyName | PDJCR/L-JHP |
| Remarks | For more details click on More Info | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.2844
Name
General Indexable Turning Tools
FamilyName
PDJCR/L-JHP
BrandName
Iscar
